Kubota BX24

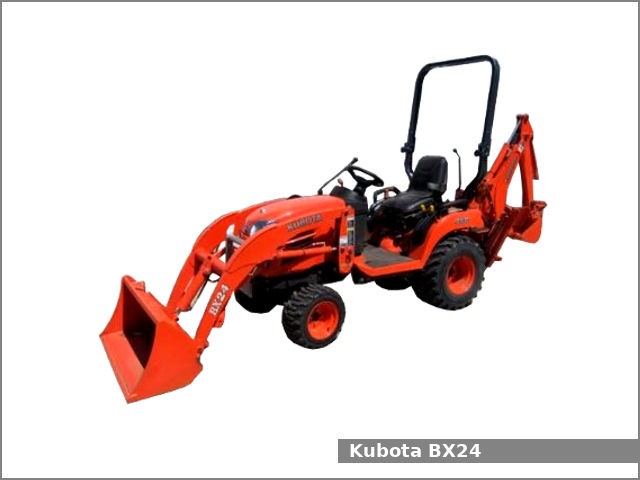

Kubota BX24The Kubota BX24 is a 4WD backhoe loader tractor from the BX50 series. This tractor was manufactured by the Kubota from 2006 to 2009. The Kubota BX24 is equipped with a 0.9 L three-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Kubota BX24 backhoe loader tractor used the Kubota D902 engine. It is a 0.9 L, 898 cm2, (54.8 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,200 rpm of maximum output power.

The Kubota BX24 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS (rollover protection structure) and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank.

Following attachments are available for Kubota BX24 backhoe loader tractor:

  • Kubota LA240 loader
  • Kubota BT601 backhoe

Kubota BX24 Specifications

General Specifications
Model Kubota BX24
Length 2,420 mm (95.3 in)
Width 1,130 mm (44.5 in)
Height 2,160 mm (85 in)
Wheel base
Weight 1,224 kg (2698 lbs)
Fuel tank capacity 25.0 liters (6.6 US gal.; 5.5 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D902
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 898 cm2, (54.8 cu·in)
Bore and stroke 72.0 mm X 73.6 mm (2.83 in X 2.9 in)
Horsepower 23.4 PS (17.2 kW; 23.0 HP) at 3,200 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 3.1 L (3.28 US. qt, 2.73 Imp. qt.)
Coolant capacity: 2.6 L (2.75 US. qt, 2.29 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 13.0 kmh (8.1 mph) Reverse: 10.0 (6.2 mph)
Transmission oil capacity 2.9 L (3.06 US. qt, 2.55 Imp. qt.)
Tires
Front tires Ag/Lawn: 18×8.5-10
Rear tires Ag/Lawn: 26×12-12
Three-Point Hitch
Caterogy I
Control type
Lift capacity 450 kg (992 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped 2,500 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Total flow 6.3 gpm (23.8 lpm)
