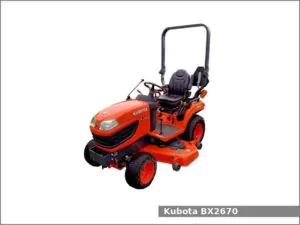

The Kubota BX2670 is a 4WD compact utility tractor from the BX series. This tractor was manufactured by Kubota from 2013 to 2016. The Kubota BX2670 is equipped with a 1.0 L three-cylinder diesel engine and hydrostatic transmission with infinite (2-range) forward and reverse gears.
The Kubota BX2670 compact utility tractor used the Kubota D1005 engine. It is a 1.0 L, 1,001 cm2, (61.1 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 25.8 PS (19.0 kW; 25.5 HP) at 3,200 rpm of maximum output power.
The Kubota BX2670 is equipped with hydrostatic power steering, wet disc type brakes, two-post foldable ROPS and 25.0 liters (6.6 US gal.; 5.5 Imp. gal) fuel tank.
Kubota BX2670 Specifications
| General Specifications | |
| Model | Kubota BX2670 |
| Length | 2,420 mm (95.3 in) |
| Width | 1,130 mm (44.5 in) |
| Height | 2,210 mm (87 in) |
| Wheel base | 1,390 mm (54.7 in) |
| Weight | 665 kg (1,466 lbs) |
| Fuel tank capacity | 25.0 liters (6.6 US gal.; 5.5 Imp. gal) |
| Battery | 12V, CCA: 535A |
| Cabin type | Two-post foldable ROPS |
| Engine | |
| Engine model | Kubota D1005 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.0 L, 1,001 cm2, (61.1 cu·in) |
| Bore and stroke | 76.0 mm X 73.6 mm (2.99 in X 2.9 in) |
| Horsepower | 25.8 PS (19.0 kW; 25.5 HP) at 3,200 rpm |
| Starter | Electric |
| Oil capacity: | 3.5 L (3.7 US. qt, 3.1 Imp. qt.) |
| Coolant capacity: | 2.9 L (3.1 US. qt, 2.6 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Wet disc type |
| Transmission model | HST |
| Transmission type | Hydrostatic |
| Gears | Infinite (2-range) forward and reverse |
| Speed | Forward: 13.0 kmh (8.1 mph) Reverse: 10.5 (6.5 mph) |
| Transmission oil capacity | 11.7 L (3.1 US. gal, 2.6 Imp. gal.) |
| Tires | |
| Front tires | Ag/Lawn/turf: 18×8.5-10 |
| Rear tires | Ag/Lawn/turf: 26×12-12 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | Quarter-inching control |
| Lift capacity (at ends) | 550 kg (1,213 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Independent |
| Middle PTO spped | 2,500 rpm |
| Rear PTO type | Independent |
| Rear PTO spped | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 11.7 L (12.36 US. qt, 10.29 Imp. qt.) |
| Pump flow | 6.2 gpm (23.5 lpm) |
