Kubota G3200

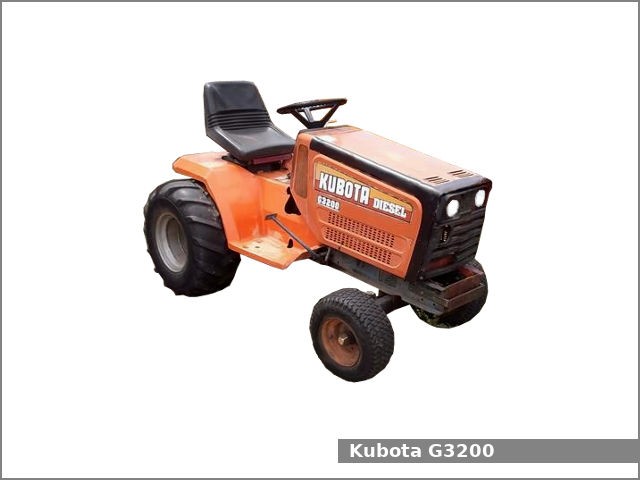

Kubota G3200The Kubota G3200 is a 2WD garden tractor from the G series. This tractor was manufactured by the Kubota from 1983 to 1988. The Kubota G3200 is equipped with a 0.4 L two-cylinder diesel engine and gear type transmission with double dry disc clutch with 3 forward and 1 reverse gear.

The Kubota G3200 garden tractor used the Kubota Z400 engine. It is a 0.4 L, 399 cm2, (24.3 cu·in) two-cylinder natural aspirated diesel engine with 64.0 mm (2.52 in) of the cylinder bore and 62.0 mm (2.44 in) of the piston stroke. This engine produced 10.2 PS (7.5 kW; 10.0 HP) of maximum output power.

The Kubota G3200 is equipped with an open operator station and 8.0 liters (2.1 US gal.; 1.8 Imp. gal) fuel tank.

Following attachments are available for the Kubota G3200 garden tractor:

  • Mid-mount Kubota RC40 40 in (1,010 mm) mower deck
  • Mid-mount Kubota RC44 44 in (1,110 mm) mower deck with 3-blades
  • Front-mount Kubota G2003 46 in (1,160 mm) blade
  • Front-mount Kubota G2000 48 in (1,210 mm) blade
  • Front-mount Kubota G2538A 38 in (960 mm) snowblower

Kubota G3200 Specifications

General Specifications
Model Kubota G3200
Length 1,800 mm (70.9 in)
Width 960 mm (37.8 in)
Height 1,150 mm (45.3 in)
Wheel base –
Weight 310 kg (683 lbs)
Fuel tank capacity 8.0 liters (2.1 US gal.; 1.8 Imp. gal)
Battery 12V, 35Ah
Cabin type Open operator station
Engine
Engine model Kubota Z400
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 0.4 L, 399 cm2, (24.3 cu·in)
Bore and stroke 64.0 mm X 62.0 mm (2.52 in X 2.44 in)
Horsepower 10.2 PS (7.5 kW; 10.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type –
Brakes –
Transmission model
Transmission type Gear type with double dry disc clutch
Gears 3 forward and 1 reverse
Speed Forward: 7.6 kmh (4.7 mph) Reverse: 3.9 (2.4 mph)
Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×10.50-12
Hitch
Caterogy 0 (optional)
