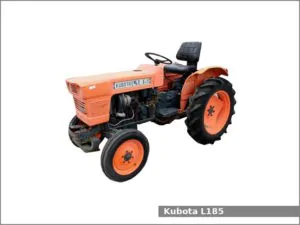

Kubota L185

Kubota L185The Kubota L185 is a 2WD (L185TP, L185FP) or 4WD (L185DT) compact utility tractor from the L series. This tractor was manufactured by the Kubota from 1977 to 1982. The Kubota L185 is equipped with a 0.7 L two-cylinder diesel engine and gear type transmission with 8 forward and 2 reverse gears.

The Kubota L185 compact utility tractor used the Kubota Z751A engine. It is a 0.7 L, 743 cm2, (45.3 cu·in) two-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. This engine produced 17.3 PS (12.7 kW; 17.0 HP) at 2,800 rpm of horsepower and 15.6 PS (11.5 KW; 15.4 HP) of PTO output power.

The Kubota L185 is equipped with manual steering, open operator station and 22.0 liters (5.8 US gal.; 4.8 Imp. gal) fuel tank.

Kubota L185 Specifications

General Specifications
Model Kubota L185
Length2,540 mm (100 in)
Width1,370 mm (53.9 in)
Height1,930 mm (76 in)
Wheel base1,520 mm (59.8 in)
Weight L185FP: 723 kg (1,594 lbs)
L185TP: 738 kg (1,628 lbs)
L185DT: 809 kg (1,785 lbs)
Fuel tank capacity22.0 liters (5.8 US gal.; 4.8 Imp. gal)
Cabin typeOpen operator station
Engine modelKubota Z751A
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement0.7 L, 743 cm2, (45.3 cu·in)
Bore and stroke76.0 mm X 82.0 mm (2.99 in X 3.23 in)
Horsepower17.3 PS (12.7 kW; 17.0 HP) at 2,800 rpm
Oil capacity:3.8 L (4.02 US. qt, 3.34 Imp. qt.)
Coolant capacity:5.3 L (5.6 US. qt, 4.66 Imp. qt.)
Injection timing25 ° B.T.D.C.
Injection pressure13,720-14,700 kPa (1,990-2,135 psi)
Intake / Exhaust valve clearance0.18-0.22 mm (0.007-0.009 in)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeManual
Front axle differential case(4WD)1.1 L (1.16 US. qts., 0.97 Imp. qts.)
Front axle outer drive case (4WD) – each0.8 L (0.85 US. qts., 0.7 Imp. qts.)
Steering gear box0.3 L (0.32 US. qts., 0.26 Imp. qts.)
Transmission model
Transmission typeGear type
Gears8 forward and 2 reverse
Speed Forward: 18.5 kmh (11.5 mph) Reverse: 9.0 (5.6 mph)
Transmission oil capacity 2WD: 22.0 L (5.8 US. gal, 4.8 Imp. gal.)
4WD: 23.0 L (6.1 US. gal, 5.1 Imp. gal.)
Transmission model
Transmission typeCreeper
Gears16 forward and 4 reverse
Speed Forward: 2.4 kmh (1.5 mph) Reverse: 1.3 (0.8 mph)
Front tiresAg: 4.00-15 (2WD), 6-14 (4WD)
Rear tiresAg: 9.5-24
PTO (Power take-off shaft)
Front PTO type
Front PTO spped2,430 rpm
Rear PTO typeTransmission
Rear PTO spped540/700/1,000 rpm
