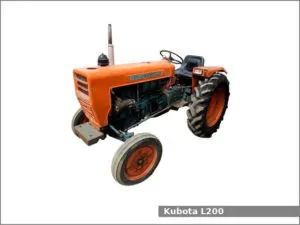

The Kubota L200 is a 2WD compact utility tractor from the L series. This tractor was manufactured by the Kubota from 1972 to 1973. The Kubota L200 is equipped with a 1.1 L two-cylinder diesel engine and gear type transmission with 6 forward and 2 reverse gears.
The Kubota L200 compact utility tractor used the Kubota engine. It is a 1.1 L, 1070 cm2, (65.3 cu·in) two-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 88.0 mm (3.46 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) of maximum output power.
The Kubota L200 is equipped with manual steering, differential mechanical expanding shoe brakes, and an open operator station.
Kubota L200 Specifications
|Fuel tank capacity||–|
|Cabin type||Open operator station|
|Engine type||Four-stroke, liquid-cooled, inline|
|Displacement||1.1 L, 1,070 cm2, (65.3 cu·in)|
|Bore and stroke||88.0 mm X 88.0 mm (3.46 in X 3.46 in)|
|Horsepower||21.4 PS (15.7 kW; 21.1 HP) at rpm|
|Transmission and chassis|
|Brakes||Differential mechanical expanding shoe|
|Transmission type||Gear type|
|Gears||6 forward and 2 reverse|
|Front tires||Ag: 4.0-15|
|Rear tires||Ag: 9.5-24|
