Kubota L210

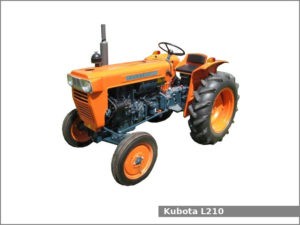

Kubota L210The Kubota L210 is a 2WD compact utility tractor from the L series. This tractor was manufactured by the Kubota from 1972 to 1973. The Kubota L210 is equipped with a 1.1 L two-cylinder diesel engine and sliding gear transmission with 6 forward and 2 reverse gears.

The Kubota L210 compact utility tractor used the Kubota Z1100A engine. It is a 1.1 L, 1,070 cm2, (65.3 cu·in) two-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 88.0 mm (3.46 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 2,700 rpm of maximum output power.

The Kubota L210 is equipped with manual steering, differential mechanical expanding shoe brakes, open operator station and 24.0 liters (6.3 US gal.; 5.3 Imp. gal) fuel tank.

Kubota L210 Specifications

General Specifications
Model Kubota L210
Length 1,940 mm (76.4 in)
Width 1,120 mm (44.1 in)
Height 1,890 mm (74.4 in)
Wheel base 1,490 mm (58.7 in)
Weight 980 kg (2,160 lbs)
Fuel tank capacity 24.0 liters (6.3 US gal.; 5.3 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine model Kubota Z1100A
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 1.1 L, 1,070 cm2, (65.3 cu·in)
Bore and stroke 88.0 mm X 88.0 mm (3.46 in X 3.46 in)
Compression ratio 20.0:1
Horsepower 21.4 PS (15.7 kW; 21.0 HP) at 2,700 rpm
Starter Electric
Oil type DS or DM
Oil capacity: 5.0 L (5.28 US. qt, 4.4 Imp. qt.)
Coolant capacity: 6.8 L (7.19 US. qt, 5.98 Imp. qt.)
Injection timing 24 ° B.T.D.C.
Injection pressure 13,800 kPa (2,000 psi)
Intake / Exhaust valve clearance 0.20-0.25 mm (0.008-0.010 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Differential mechanical expanding shoe
Transmission model
Transmission type Sliding gear
Gears 6 forward and 2 reverse
Speed Forward: 18.1 kmh (11.2 mph) Reverse: 4.4 (2.7 mph)
Transmission oil capacity 12.2 L (3.2 US. gal, 2.7 Imp. gal.)
Front tires Ag: 4.0-15
Rear tires Ag: 9.5-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity 930 kg (2,051 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO spped 650/990 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 7.03 L (7.43 US. qt, 6.19 Imp. qt.)
Pressure 1,420 psi (97.9 bar)
Total flow 2.85 gpm (10.8 lpm)
