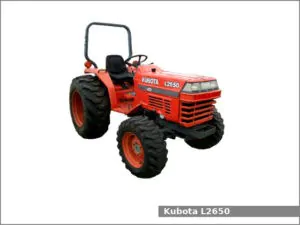

Kubota L2650

Kubota L2650The Kubota L2650 is a 2WD or 4WD compact utility tractor from the L50 series. This tractor was manufactured by the Kubota from 1990 to 1993. The Kubota L2650 is equipped with a 1.4 L three-cylinder diesel engine and one of two transmissions: mechanical shuttle transmission with 8 forward and 8 reverse gears or glide shift (GST) transmission with 8 forward and 8 reverse gears.

The Kubota L2650 compact utility tractor used the Kubota D1402-DI-AE engine. It is a 1.4 L, 1,395 cm2, (85.1 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 81.0 mm (3.19 in) of the piston stroke. This engine produced 29.4 PS (21.6 kW; 29.0 HP) at 2,600 rpm of gross output power and 89.2 N·m (9.1 kg·m, 65.7 ft·lb) of torque.

The Kubota L2650 is equipped with power steering, wet disc type brakes, open operator station with two-post ROPS and 29.0 liters (7.7 US gal.; 6.4 Imp. gal) fuel tank.

Kubota L2650 Specifications

General Specifications
Model Kubota L2650
Length 2,770 mm (109.1 in)
Width 1,300 mm (51.2 in)
Height 2,110 mm (83.1 in)
Wheel base 1,640 mm (64.6 in)
Weight 2WD: 1,080 kg (2,380 lbs)
4WD: 1,180 kg (2,600 lbs)
GST: 1,200 kg (2,655 lbs)
Fuel tank capacity 29.0 liters (7.7 US gal.; 6.4 Imp. gal)
Battery 12V, CCA: 490A
Cabin type Open operator station with two-post ROPS. Optional canopy.
Engine
Engine model Kubota D1402-DI-AE
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.4 L, 1395 cm2, (85.1 cu·in)
Bore and stroke 84.0 mm X 81.0 mm (3.31 in X 3.19 in)
Horsepower 29.4 PS (21.6 kW; 29.0 HP) at 2,600 rpm
Torque 89.2 N·m (9.1 kg·m, 65.7 ft·lb)
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 4.6 L (4.9 US. qt, 4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc type
Differential lock Mechanical rear lock
Transmission model
Transmission type Mechanical shuttle
Gears 8 forward and 8 reverse
Speed Forward: 21.4 kmh (13.3 mph) Reverse: (0 mph)
Transmission model Glide Shift (GST)
Transmission type Power shift
Gears 8 forward and 8 reverse
Speed Forward: 21.4 kmh (13.3 mph) Reverse: (0 mph)
Tires
Front tires Ag: 4.00-15 (2WD), 7-16 (4WD)
Rear tires Ag: 11.2-24
Three-Point Hitch
Caterogy I
Control type Position control, draft control (option)
Lift capacity (at ends) 1,200 kg (2,646 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 1,080/2,000 rpm
Rear PTO type Transmission or live (optional)
Rear PTO spped 540/1,000 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2490 psi (171.7 bar)
Pump flow 8.2 gpm (31 lpm)
