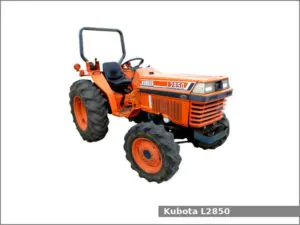

Kubota L2850

Kubota L2850The Kubota L2850 is a 2WD (L2850F) or 4WD (L2850DT) compact utility tractor from the L series. This tractor was manufactured by the Kubota from 1985 to 1990. The Kubota L2850 compact tractor is equipped with a 1.7 L four-cylinder diesel engine and one of three transmissions: mechanical shuttle transmission with 8 forward and 7 reverse gears, partially synchronized transmission with 8 forward and 7 reverse gears or power shift transmission with 8 forward and 8 reverse gears.

The Kubota L2850 compact utility tractor used the Kubota V1702-DI-A engine. It is a 1.7 L, 1,732 cm2, (105.7 cu·in) four-cylinder natural aspirated diesel engine with 82.0 mm (3.23 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. This engine produced 34.5 PS (25.4 kW; 34.0 HP) at 2,600 rpm of gros output power.

The Kubota L2850 is equipped with manual or power (option) steering, differential wet disc brakes, open operator station with two-post ROPS and 29.0 liters (7.7 US gal.; 6.4 Imp. gal) fuel tank.

Following attachments are available for the Kubota L2850 compact utility tractor:

  • Mid-mount Kubota RC72-28 72 in (1,820 mm) with 3-blades
  • Rear-mount Kubota FL1021 tiller
  • Rear-mount Kubota FL1271 tiller
  • Kubota BF500 loader
  • Kubota BL4520 backhoe

Kubota L2850 Specifications

General Specifications
ModelKubota L2850
Length2,900 mm (114.2 in)
Width1,360 mm (53.5 in)
Height1,980 mm (78 in)
Wheel base1,730 mm (68.1 in)
Weight1,260 kg (2,778 lbs)
Fuel tank capacity29.0 liters (7.7 US gal.; 6.4 Imp. gal)
Battery12V, 110Ah
Cabin typeOpen operator station with two-post ROPS
Engine modelKubota V1702-DI-A
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement1.7 L, 1,732 cm2, (105.7 cu·in)
Bore and stroke82.0 mm X 82.0 mm (3.23 in X 3.23 in)
Compression ratio18.0:
Horsepower34.5 PS (25.4 kW; 34.0 HP) at 2,600 rpm
Oil capacity:8.4 L (8.9 US. qt, 7.4 Imp. qt.)
Coolant capacity:7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeManual or power (option)
BrakesDifferential wet disc
Differential lockRear standard
Transmission model
Transmission typeMechanical shuttle
Gears8 forward and 7 reverse
Speed Forward: 21.7 kmh (13.5 mph) Reverse: 13.8 (8.6 mph)
Transmission oil capacity31.0 L (8.2 US. gal, 6.8 Imp. gal.)
Transmission model
Transmission typePartially synchronized
Gears8 forward and 7 reverse
Speed Forward: 20.8 kmh (12.9 mph) Reverse: 13.2 (8.2 mph)
Transmission oil capacity31.0 L (8.2 US. gal, 6.8 Imp. gal.)
Transmission modelGST
Transmission typeGlide shift witj wet disc clutch
Gears8 forward and 8 reverse
Speed Forward: 21.4 kmh (13.3 mph) Reverse: 19.1 (11.9 mph)
Front tiresAg: 5.00-15 (2WD), 7-16 (4WD)
Rear tiresAg: 11.2-24
Three-Point Hitch
Control typePosition control and draft control
Lift capacity (at ends)1,100 kg (2,430 lbs)
PTO (Power take-off shaft)
Middle PTO typeOptional
Middle PTO spped1,080/2,000 rpm
Rear PTO typeContinuous or live (optional)
Rear PTO spped540/1,000 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity31.0 L (32.76 US. qt, 27.28 Imp. qt.)
Pressure2275 psi (156.9 bar)
Valves1 to 3
Pump flow6.7 gpm (25.4 lpm)
Steering flow2.8 gpm (10.6 lpm)
Total flow9.5 gpm (36 lpm)
