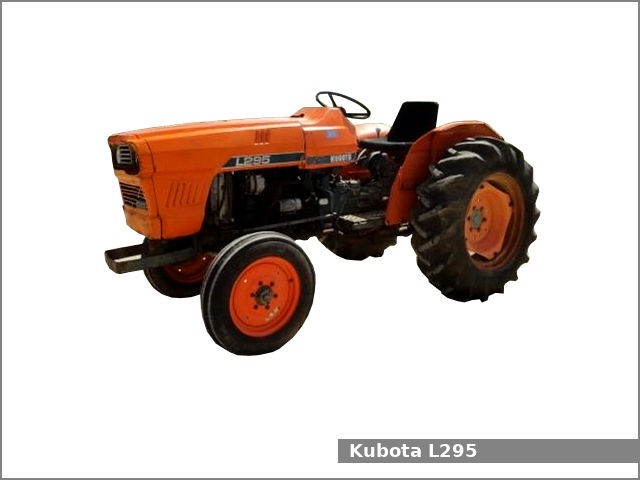

Kubota L295

Kubota L295The Kubota L295 is a 2WD or 4WD (L295DT) compact utility tractor from the L series. This tractor was manufactured by the Kubota from 1978 to 1982. The Kubota L295 is equipped with a 1.3 L three-cylinder diesel engine and gear type transmission with 8 forward and 2 reverse gears.

The Kubota L295 compact utility tractor used the Kubota D1301A engine. It is a 1.3 L, 1,299 cm2, (79.3 cu·in) three-cylinder natural aspirated diesel engine with 82.0 mm (3.23 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. The compression ratio rating is 21.0:1. This engine produced 30.5 PS (22.4 kW; 30.0 HP) at 2,800 rpm of horsepower and 26.8 PS (19.7 KW; 26.4 HP) of PTO output power.

The Kubota L295 is equipped with manual steering, differential mechanical wet disc brakes, open operator station with two-post ROPS and 35.0 liters (9.2 US gal.; 7.7 Imp. gal) fuel tank.

Kubota L295 Specifications

General Specifications
Model Kubota L295
Length 2,840 mm (111.8 in)
Width 1,420 mm (55.9 in)
Height 1,400 mm (55.1 in)
Wheel base 1,650 mm (65.0 in)
Weight 1,300 kg (2,866 lbs)
Fuel tank capacity 35.0 liters (9.2 US gal.; 7.7 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1301A
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.3 L, 1,299 cm2, (79.3 cu·in)
Bore and stroke 82.0 mm X 82.0 mm (3.23 in X 3.23 in)
Compression ratio 21.0:1
Horsepower 30.5 PS (22.4 kW; 30 HP) at 2,800 rpm
Starter Electric
Oil capacity: 6.1 L (6.45 US. qt, 5.37 Imp. qt.)
Coolant capacity: 5.8 L (6.13 US. qt, 5.1 Imp. qt.)
Compression pressure 3,235 kPa (470 psi)
Injection timing 25 ° B.T.D.C.
Injection pressure 13,720-14,700 kPa (1,990-2,135 psi)
Intake / Exhaust valve clearance 0.18-0.22 mm (0.007-0.009 in)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual
Brakes Differential mechanical wet disc
Steering gear box (manual) 0.3 L (0.32 US. qts, 0.26 Imp. qts.)
Front axle differential case(4WD) 2.0 L (2.1 US. qts, 1.76 Imp. qts.)
Front axle outer drive case(4WD) 1.5 L (1.6 US.qts, 1.32 Imp. qts.)
Transmission model
Transmission type Gear type
Gears 8 forward and 2 reverse
Speed Forward: 12.1 kmh (7.5 mph) Reverse: 10.3 (6.4 mph)
Transmission oil capacity 2WD: 26.0 L (6.9 US gal, 5.7 Imp. gal.)
4WD: 27.0 L (7.1 US gal, 5.9 Imp. gal.)
Tires
Front tires Ag: 5.00-15
Rear tires Ag: 12.4-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO spped 540/700/1000 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 5.5 gpm (20.8 lpm)
