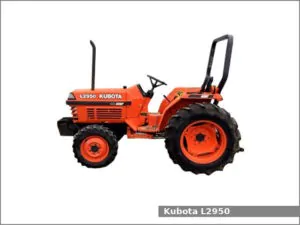

Kubota L2950

Kubota L2950The Kubota L2950 is a 2WD or 4WD compact utility tractor from the L50 series. This tractor was manufactured by the Kubota from 1990 to 1993. The Kubota L2950 is equipped with a 1.5 L three-cylinder diesel engine and one of two transmissions: mechanical shuttle transmission with 8 forward and 8 reverse gears or glide shift (GST) transmission with 8 forward and 8 reverse gears.

The Kubota L2950 compact utility tractor used the Kubota D1462-DI-AE engine. It is a 1.5 L, 1,462 cm2, (89.2 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. This engine produced 32.2 PS (23.7 kW; 31.8 HP) at 2,600 rpm of gross output power and 95.2 N·m (9.7 kg·m, 70.2 ft·lb) of peak torque.

The Kubota L2950 is equipped with integral type power steering (2WD version) or hydrostatic power steering (4WD version), wet disc type brakes, open operator station with two-post ROPS and 29.0 liters (7.7 US gal.; 6.4 Imp. gal) fuel tank.

Following attachments are available for the Kubota L2950 compact utility tractor:

  • Kubota LB400 loader

Kubota L2950 Specifications

General Specifications
Model Kubota L2950
Length 2,795 mm (110 in)
Width 1,340 mm (52.8 in)
Height 2,125 mm (83.7 in)
Wheel base 1,640 mm (64.6 in)
Weight 2WD: 1,110 kg (2,445 lbs)
4WD: 1,220 kg (2,670 lbs)
Fuel tank capacity 29.0 liters (7.7 US gal.; 6.4 Imp. gal)
Battery 12V, CCA: 490A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1462-DI-AE
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,462 cm2, (89.2 cu·in)
Bore and stroke 87.0 mm X 82.0 mm (3.43 in X 3.23 in)
Horsepower 32.2 PS (23.7 kW; 31.8 HP) at 2,600 rpm
Torque 95.2 N·m (9.7 kg·m, 70.2 ft·lb)
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 4.6 L (4.9 US. qt, 4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type 2WD: Integral type power steering
4WD: Hydrostatic power steering
Brakes Wet disc type
Transmission model
Transmission type Mechanical shuttle
Gears 8 forward and 8 reverse
Speed Forward: 22.2 kmh (13.8 mph) Reverse: 20.0 (12.4 mph)
Transmission model GST
Transmission type Glide shift
Gears 8 forward and 8 reverse
Speed Forward: 23.8 kmh (14.8 mph) Reverse: 19.0 (11.8 mph)
Tires
Front tires Ag: 5.00-15 (2WD), 7-16 (4WD)
Rear tires Ag: 12.4-24
Three-Point Hitch
Caterogy I
Control type Position control, draft control (option)
Lift capacity (at ends) 1,200 kg (2,646 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 1,080/2,000 rpm
Rear PTO type Transmission or live (optional)
Rear PTO spped 540/1,000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity Dry disc clutch: 28.5 L (30.1 US. qts, 25.1 Imp. qts)
Wet type clutch: 29.5 L (31.2 US. qts, 26.0 Imp. qts)
Pressure 2,490 psi (171.7 bar)
Pump flow Dry disc clutch: 6.7 gpm (25.4 lpm)
Wet type clutch: 7.8 gpm (29.5 lpm)
