Kubota L3300

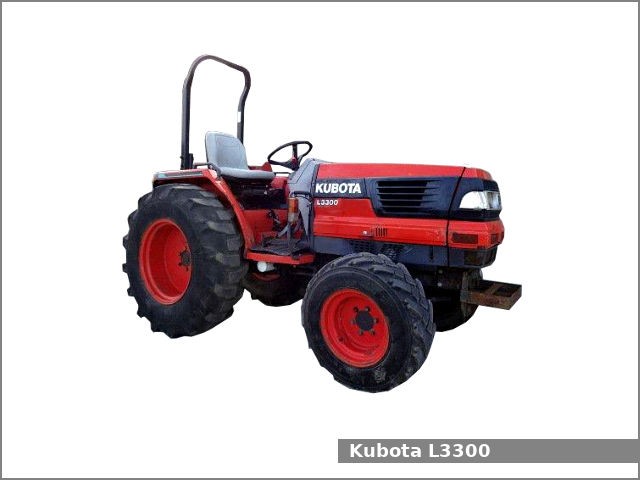

Kubota L3300The Kubota L3300 is a 2WD or 4WD compact utility tractor from the Grand L series. This tractor was manufactured by the Kubota from 1994 to 1999. The Kubota L3300 is equipped with a 1.6 L three-cylinder diesel engine one of two transmissions: synchronized shuttle (FST) transmission with dry disc clutch and 8 forward and 8 reverse gears or power shuttle (GST) transmission with dry disc clutch and 8 forward and 8 reverse gears.

The Kubota L3300 compact utility tractor used the Kubota D1703-A engine. It is a 1.6 L, 1,647 cm2, (100.5 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. This engine produced 35.6 PS (26.2 kW; 35.1 HP) at 2,600 rpm of gross output power and 105.6 N·m (10.8 kg·m, 77.8 ft·lb) of torque.

The Kubota L3300 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS and 35.0 liters (9.2 US gal.; 7.7 Imp. gal) fuel tank.

Following attachments are available for the Kubota L3300 compact utility tractor:

  • Mid-mount Kubota RC72-29 72 in (1,820 mm) mower deck with 3-blades and hydraulic lift
  • Front-mount Kubota L2061A 60 in (1,520 mm) blade
  • Front-mount Kubota L2072 72 in (1,820 mm) blade
  • Front-mount Kubota L52HD snowblower
  • Front-mount Kubota L62HD snowblower
  • Kubota LA480 loader
  • Kubota BL4690 backhoe

Kubota L3300 Specifications

General Specifications
Model Kubota L3300
Length 2,850 mm (112.2 in)
Width 1,355 mm (53.3 in)
Height 2,130 mm (83.9 in)
Wheel base 4WD: 1,670 mm (65.7 in)
Weight 2WD: 1,180 kg (2,610 lbs)
4WD: 1,260 kg (2,778 lbs)
Fuel tank capacity 35.0 liters (9.2 US gal.; 7.7 Imp. gal)
Battery 12V, CCA: 490A
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1703-A
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,647 cm2, (100.5 cu·in)
Bore and stroke 87.0 mm X 92.4 mm (3.43 in X 3.64 in)
Horsepower 35.6 PS (26.2 kW; 35.1 HP) at 2,600 rpm
Torque 105.6 N·m (10.8 kg·m, 77.8 ft·lb)
Starter Electric
Oil capacity: 3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Coolant capacity: 7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model FST
Transmission type Synchronized shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 26.2 kmh (16.3 mph) Reverse: 24.1 (15 mph)
Transmission oil capacity 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
Transmission model GST (Glide Shift)
Transmission type Power shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 26.2 kmh (16.3 mph) Reverse: 24.0 (14.9 mph)
Transmission oil capacity 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
Tires
Front tires Ag: 5.00-15 (2WD), 7.2-16 (4WD)
Rear tires Ag: 12.4-24
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 1,300 kg (2,867 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO spped 2,000 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 39.0 L (41.21 US. qt, 34.32 Imp. qt.)
Pressure 2,490 psi (172 bar)
Pump flow 7.0 gpm (26.5 lpm)
