Kubota L3400

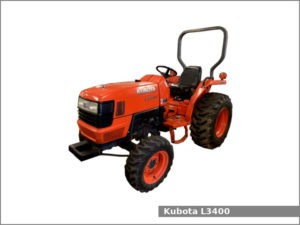

Kubota L3400The Kubota L3400 is a 2WD (L3400F) or 4WD (L3400DT and L3400HST) compact utility tractor from the L series. This tractor was manufactured by the Kubota from 2004 to 2010.

The Kubota L3400 was equipped with one of two engines: a 1.6 L three-cylinder diesel engine from 2004 to 2007 and a 1.8 L three-cylinder diesel engine from 2008 to 2010. The Kubota L3400 used a constant mesh transmission with 8 forward and 4 reverse gears of a hydrostatic transmission with infinite (3-range) forward and reverse.

The tractor could be equipped with the following engines:

  • Kubota D1703 (2004-2007). It is a 1.6 L, 1,647 cm2, (100.5 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. This engine produced 35.2 PS (25.9 kW; 34.7 HP) of gross horsepower and 29.4 PS (21.6 KW; 29.0 HP) of PTO output power for gear models and 27.9 PS (20.5 KW; 27.5 HP) for models with hydrostatic transmission.
  • Kubota XtraPower (2008-2010). It is a 1.8 L, 1,825 cm2, (111.4 cu·in) three-cylinder natural aspirated diesel engine. The cylinder bore is 86.0 mm (3.39 in) and the piston stroke is 102.0 mm (4.02 in). This engine produced 36.2 PS (26.6 kW; 35.7 HP) at 2,700 rpm of maximum output power.

The Kubota L3400 is equipped with power steering, wet disc type brakes, open operator station with two-post ROPS and 34.0 liters (9.0 US gal.; 7.5 Imp. gal) fuel tank.

Following attachments are available for the Kubota L3400 compact utility tractor:

  • Kubota LA463 loader
  • Kubota BH76 backhoe

Kubota L3400 Specifications

General Specifications
Model Kubota L3400
Length 2WD: 2,810 mm (110.6 in)
4WD: 2,705 mm (106.5 in)
Width 1,305 mm (51.4 in)
Height 2,160 mm (85 in)
Wheel base 1,610 mm (63.4 in)
Weight L3400F: 1,090 kg (2,403 lbs)
L3400DT: 1,170 kg (2,580 lbs)
L3400HST: 1,180 kg (2,600 lbs)
Fuel tank capacity 34.0 liters (9 US gal.; 7.5 Imp. gal)
Battery 12V, CCA: 490A
Cabin type Open operator station with two-post ROPS
Engine (2004-2007)
Engine model Kubota D1703
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,647 cm2, (100.5 cu·in)
Bore and stroke 87.0 mm X 92.4 mm (3.43 in X 3.64 in)
Horsepower 35.2 PS (25.9 kW; 34.7 HP)
Torque 108.3 N·m (11 kg·m, 79.8 ft·lb)
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Engine (2008-2010)
Engine model Kubota XtraPower
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.8 L, 1,825 cm2, (111.4 cu·in)
Bore and stroke 86.0 mm X 102.0 mm (3.39 in X 4.02 in)
Horsepower 36.2 PS (26.6 kW; 35.7 HP) at 2,700 rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc type
Differential lock Rear standard
Transmission model
Transmission type Constant mesh
Gears 8 forward and 4 reverse
Speed Forward: 21.2 kmh (13.2 mph) Reverse: 7.6 (4.7 mph)
Transmission oil capacity 27.6 L (7.3 US. gal, 6.1 Imp. gal.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 22.7 kmh (14.1 mph) Reverse: 20.4 (12.7 mph)
Transmission oil capacity 27.6 L (7.3 US. gal, 6.1 Imp. gal.)
Tires
Front tires Ag: 5-15 (2WD), 7-16 (4WD)
Lawn/turf: 23×8.50-12 (2WD), 25×8.50-14 (4WD)
Industrial: 27×8.50-15
Rear tires Ag: 11.2-24
Lawn/turf: 13.6-16
Industrial: 15-19.5R4
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 906 kg (1,998 lbs)
PTO (Power take-off shaft)
Rear PTO type Live (gear) or independent (hydro)
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 27.6 L (29.16 US. qt, 24.28 Imp. qt.)
Valves 0 to 3
Pump flow 6.8 gpm (25.7 lpm)
Steering flow 4.1 gpm (15.5 lpm)
Total flow 10.9 gpm (41.3 lpm)
