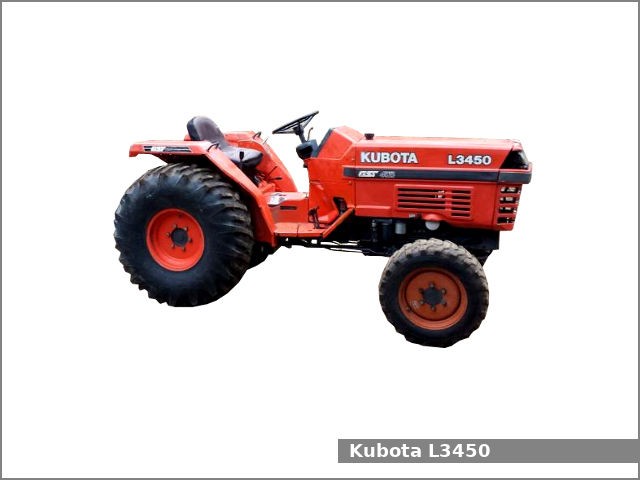

The Kubota L3450 is a 2WD or 4WD compact utility tractor from the L50 series. This tractor was manufactured by the Kubota from 1990 to 1993. The Kubota L3450 is equipped with a 1.9 L four-cylinder diesel engine and and one of two transmissions: mechanical shuttle transmission with 8 forward and 8 reverse gears or glide shift (GST) transmission with 8 forward and 8 reverse gears.
The Kubota L3450 compact utility tractor used the Kubota V1902-DI-AE engine. It is a 1.9 L, 1,861 cm2, (113.6 cu·in) four-cylinder natural aspirated diesel engine with 85.0 mm (3.35 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. This engine produced 37.1 PS (27.3 kW; 36.6 HP) at 2,600 rpm of gross output power and 115.8 N·m (11.8 kg·m, 85.3 ft·lb).
The Kubota L3450 is equipped with integral type power steering (2WD) or hydrostatic power steering (4WD), wet disc type brakes, open operator station with two-post ROPS and 29.0 liters (7.7 US gal.; 6.4 Imp. gal) fuel tank.
Kubota L3450 Specifications
| General Specifications | |
| Model | Kubota L3450 |
| Length | 2,900 mm (114.2 in) |
| Width | 1,370 mm (53.9 in) |
| Height | 2,105 mm (82.9 in) |
| Wheel base | 1,735 mm (68.3 in) |
| Weight |
2WD: 1,185 kg (2,615 lbs) 4WD: 1,290 kg (2,845 lbs) |
| Fuel tank capacity | 29.0 liters (7.7 US gal.; 6.4 Imp. gal) |
| Battery | 12V, CCA: 447A |
| Cabin type | Open operator station with two-post ROPS |
| Engine | |
| Engine model | Kubota V1902-DI-AE |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 1.9 L, 1,861 cm2, (113.6 cu·in) |
| Bore and stroke | 85.0 mm X 82.0 mm (3.35 in X 3.23 in) |
| Horsepower | 37.1 PS (27.3 kW; 36.6 HP) at 2,600 rpm |
| Torque | 115.8 N·m (11.8 kg·m, 85.3 ft·lb) |
| Starter | Electric |
| Oil capacity: | 8.4 L (8.9 US. qt, 7.4 Imp. qt.) |
| Coolant capacity: | 5.6 L (5.9 US. qt, 4.9 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type |
2WD: Integral type power steering 4WD: Hydrostatic power steering |
| Brakes | Wet disc type |
| Differential lock | Mechanical rear lock |
| Transmission model | |
| Transmission type | Mechanical shuttle |
| Gears | 8 forward and 8 reverse |
| Speed | Forward: 22.4 kmh (13.9 mph) Reverse: 20.0 (12.4 mph) |
| Transmission model | GST (Glide Shift) |
| Transmission type | Power shuttle with dry disc clutch |
| Gears | 8 forward and 8 reverse |
| Speed | Forward: 23.3 kmh (14.5 mph) Reverse: 21.0 (13.1 mph) |
| Transmission oil capacity | 28.5 L (7.5 US. gal, 6.3 Imp. gal.) |
| Tires | |
| Front tires | Ag: 5.00-15 (2WD), 7-16 (4WD) |
| Rear tires | Ag: 12.4-24 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | Position control, draft control (option) |
| Lift capacity (at ends) | 1,200 kg (2,646 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Transmission or live (optional) |
| Rear PTO spped | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity |
Dry disc clutch: 28.5 L (30.1 US. qts, 25.1 Imp. qts) Wet type clutch: 29.5 L (31.2 US. qts, 26.0 Imp. qts) |
| Pressure | 2490 psi (171.7 bar) |
| Pump flow |
Dry disc clutch: 7.5 gpm (28.4 lpm) Wet type clutch: 8.7 gpm (32.9 lpm) |
