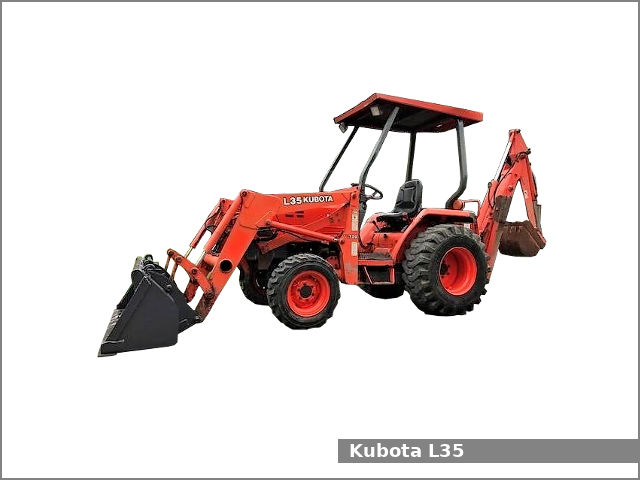

Kubota L35

Kubota L35The Kubota L35 is a 4WD backhoe loader tractor from the L series. This tractor was manufactured by the Kubota from 1999 to 2004. The Kubota L35 is equipped with a 1.6 L three-cylinder diesel engine and glide shift transmission with dry disc clutch with 8 forward and 8 reverse gears.

The Kubota L35 backhoe loader tractor used the Kubota D1703 engine. It is a 1.6 L, 1,647 cm2, (100.5 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. This engine produced 35.6 PS (26.2 kW; 35.0 HP) at 2,700 rpm of maximum output power.

The Kubota L35 is equipped with power steering, four-post ROPS/FOPS canopy and 35.0 liters (9.2 US gal.; 7.7 Imp. gal) fuel tank.

Following attachments are available for the Kubota L35 backhoe loader tractor:

  • Kubota TL720 loader
  • Kubota BT900 backhoe

Kubota L35 Specifications

General Specifications
Model Kubota L35
Length 5,660 mm (222.8 in)
Width 1,670 mm (65.7 in)
Height
Wheel base 1,690 mm (66.5 in)
Weight 2,720 kg (5,996 lbs)
Fuel tank capacity 35.0 liters (9.2 US gal.; 7.7 Imp. gal)
Battery 12V
Cabin type Four-post ROPS/FOPS canopy
Engine
Engine model Kubota D1703
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.6 L, 1,647 cm2, (100.5 cu·in)
Bore and stroke 87.0 mm X 92.4 mm (3.43 in X 3.64 in)
Horsepower 35.6 PS (26.2 kW; 35.0 HP) at 2,700 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes
Final drives Bull gear
Transmission model
Transmission type Glide shift with dry disc clutch
Gears 8 forward and 8 reverse
Tires
Front tires Industrial: 27×10.5-15
Rear tires Industrial: 15-19.5
Hydraulic system
Hydraulic type Open center
Pump flow 17.3 gpm (65.5 lpm)
