Kubota L3800

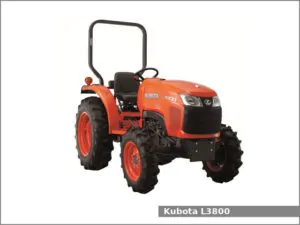

Kubota L3800The Kubota L3800 is a 2WD (L3800) or 4WD (L3800HST) compact utility tractor from the Standard L series. This tractor was manufactured by the Kubota from 2011 to 2014. The Kubota L3800 is equipped with 1.8 L three-cylinder diesel engine and and one of two transmissions: gear shift transmission with dry disc clutch and 8 forward and 4 reverse gears or hydrostatic transmission (L3800HST) with infinite (3-range) forward and reverse.

The Kubota L3800 compact utility tractor used the Kubota D1803 engine. It is a 1.8 L, 1,826 cm2, (111.4 cu·in) three-cylinder natural aspirated diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 37.9 PS (27.9 kW; 37.4 HP) at 2,800 rpm of gross horsepower and 32 PS (23.5 KW; 31.5 HP) of PTO output power.

The Kubota L3800 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS and 38.0 liters (10 US gal.; 8.4 Imp. gal) fuel tank.

Following attachments are available for Kubota L3800 compact utility tractor:

  • Kubota LA524 loader
  • Kubota BH77 backhoe

Kubota L3800 Specifications

General Specifications
Model Kubota L3800
Length 2WD: 2,800 mm (110.2 in)
4WD: 2,700 mm (106.3 in)
Width 1,390 mm (54.7 in)
Height 2,320 mm (91.3 in)
Wheel base 1,600 mm (63 in)
Weight L3800F: 1,125 kg (2,480 lbs)
L3800DT: 1,205 kg (2,657 lbs)
L3800HST: 1,210 kg (2,657 lbs)
Fuel tank capacity 38.0 liters (10 US gal.; 8.4 Imp. gal)
Battery 12V, CCA: 490A
Cabin type Open operator station with two-post ROPS
Engine model Kubota D1803
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.8 L, 1,826 cm2, (111.4 cu·in)
Bore and stroke 86.0 mm X 102.4 mm (3.39 in X 4.03 in)
Horsepower 37.9 PS (27.9 kW; 37.4 HP) at 2,800 rpm
Torque 115.6 N·m (11.8 kg·m, 85.2 ft·lb)
Starter Electric
Oil capacity: 7.1 L (7.5 US. qt, 6.25 Imp. qt.)
Coolant capacity: 6.0 L (6.34 US. qt, 5.28 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model
Transmission type Gear shift with dual-stage dry disc clutch
Gears 8 forward and 4 reverse
Speed Forward: 22.0 kmh (13.7 mph) Reverse: 7.9 (4.9 mph)
Transmission oil capacity 27.5 L (7.3 US. gal, 6 Imp. gal.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 23.7 kmh (14.7 mph) Reverse: 21.2 (13.2 mph)
Transmission oil capacity 23.5 L (6.2 US. gal, 5.2 Imp. gal.)
Front tires Ag: 5.00-15 (2WD), 7.2-16 (4WD)
Rear tires Ag: 11.2-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity 906 kg (1,998 lbs)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 6.3 gpm (23.8 lpm)
Total flow 10.1 gpm (38.2 lpm)
Steering flow 3.8 gpm (14.4 lpm)
