Kubota L4060

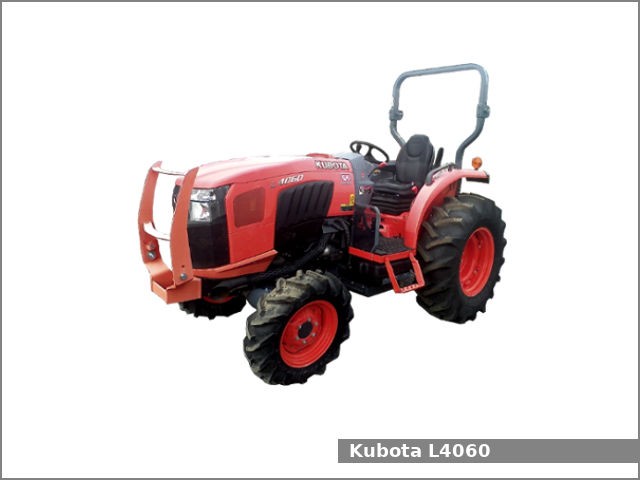

Kubota L4060The Kubota L4060 is a 4WD compact utility tractor from the L60 series. This tractor has been manufactured by the Kubota since 2013. The Kubota L4060 is equipped with a 2.4 L four-cylinder diesel engine and one of three transmissions: hydrostatic transmission with infinite (3-range) forward and reverse gears (L4060HST and L4060HSTC), glide shift transmission with 12 forward and 8 reverse gears (L4060GST) or synchronized shuttle transmission with 8 forward and 8 reverse gears (L4060DT).

The Kubota L4060 compact utility tractor used the Kubota V2403-CR-E4 engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 40.5 PS (29.8 kW; 40.0 HP) of net horsepower.

The Kubota L4060 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post foldable ROPS (L4060HST, L4060GST, L4060DT) or Grand Cab with air-conditioning (L4060HSTC), and 51.0 liters (13.5 US gal.; 11.2 Imp. gal) fuel tank.

Kubota L4060 Specifications

General Specifications
Model Kubota L4060
Length 3,085 mm (121.5 in)
Width 1,690 mm (66.5 in)
Height 2,480 mm (97.6 in)
Wheel base 1,895 mm (74.6 in)
Weight L4060HST: 1,700 kg (3,748 lbs)
L4060GST: 1,655 kg (3,649 lbs)
L4060DT: 1,635 kg (3,605 lbs)
Fuel tank capacity 51.0 liters (13.5 US gal.; 11.2 Imp. gal)
Battery 12V, CCA: 582A
Cabin type Open operator station with two-post foldable ROPS or Grand Cab with air-conditioning (option).
Engine
Engine model Kubota V2403-CR-E4
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.4 L, 2,434 cm2, (148.5 cu·in)
Bore and stroke 87.0 mm X 102.4 mm (3.43 in X 4.03 in)
Horsepower 40.5 PS (29.8 kW; 40.0 HP)
Torque 133.5 N·m (13.6 kg·m, 98.4 ft·lb)
Starter Electric
Oil type SAE 10W-30 or 15W-40
Oil capacity: 8.2 L (8.66 US. qt, 7.21 Imp. qt.)
Coolant capacity: 7.5 L (7.93 US. qt, 6.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model HST Plus
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 24.3 (15.1 mph)
Transmission oil capacity 43.0 L (11.4 US. gal, 9.5 Imp. gal.)
Transmission model GST
Transmission type Glide shift
Gears 12 forward and 8 reverse
Speed Forward: 25.7 kmh (16 mph) Reverse: 24.5 (15.2 mph)
Transmission oil capacity 43.0 L (11.4 US. gal, 9.5 Imp. gal.)
Transmission model
Transmission type Synchronized shuttle
Gears 8 forward and 8 reverse
Speed Forward: 25.7 kmh (16 mph) Reverse: 24.5 (15.2 mph)
Tires
Front tires Ag: 8.3-16
Rear tires Ag: 14.9-24
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity (at ends) 1,750 kg (3,859 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,000 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 43.0 L (45.44 US. qt, 37.83 Imp. qt.)
Pressure 2,567 psi (177 bar)
Pump flow HST: 9.4 gpm (35.6 lpm)
GST: 9.8 gpm (37.1 lpm)
Steering flow HST: 4.7 gpm (17.8 lpm)
GST: 4.9 gpm (18.5 lpm)
Total flow HST: 14.1 gpm (53.4 lpm)
GST: 14.7 gpm (55.6 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
