Kubota L4330

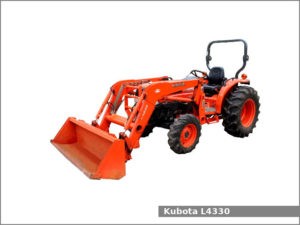

Kubota L4330The Kubota L4330 is a 4WD compact utility tractor from the L30 series. This tractor was manufactured by Kubota from 2003 to 2007. The Kubota L4330 is equipped with a 2.2 L four-cylinder diesel engine and one of three transmissions: hydrostatic transmission, FST or GST.

The Kubota L4330 compact utility tractor used the Kubota V2203 engine. It is a 2.2 L, 2,197 cm2, (134.1 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.0 mm (3.62 in) of the piston stroke. This engine produced 41.6 PS (30.6 kW; 41.0 HP) at 2,600 rpm of output power.

The Kubota L4330 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS or Grand Cab (optional) and 40.0 liters (10.6 US gal.; 8.8 Imp. gal) fuel tank. The L4330 could be equipped with the Kubota LA853 loader.

The Kubota L4330 variants:

  • L4330DT: 4WD with 8 speed (FST) transmission
  • L4330GST: 4WD with 12 speed (GST) transmission
  • L4330HST: 4WD with hydrostatic transmission
  • L4330HSTC: 4WD with hydrostatic transmission and Grand Cab

Kubota L4330 Specifications

General Specifications
Model Kubota L4330
Length 3,080 mm (121.3 in)
Width 1,680 mm (66.1 in)
Height ROPS: 2,310 mm (90.9 in)
Cab: 2,200 mm (87.0 in)
Wheel base 1,890 mm (74.4 in)
Weight (DT version) 1,560 kg (3,440 lbs)
Fuel tank capacity 40.0 liters (10.6 US gal.; 8.8 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS or Grand Cab (optional)
Engine
Engine model Kubota V2203
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,197 cm2, (134.1 cu·in)
Bore and stroke 87.0 mm X 92.0 mm (3.43 in X 3.62 in)
Horsepower 41.6 PS (30.6 kW; 41.0 HP) at 2,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Transmission model FST
Transmission type Sync shuttle
Gears 8 forward and 8 reverse
Transmission model GST
Transmission type Glide Shift
Gears 12 forward and 8 reverse
Tires
Front tires Ag: 8.3-16
Rear tires Ag: 14.9-24
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at 610 mm/24 in) 1,250 kg (2,760 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2,000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 3 (optional)
Pump flow 9.4 gpm (35.6 lpm)
Steering flow 4.7 gpm (17.8 lpm)
Total flow 14.1 gpm (53.4 lpm)
