Kubota L4600

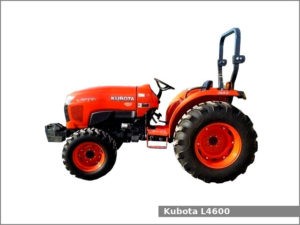

Kubota L4600The Kubota L4600 is a 2WD (L4600F) or 4WD (L4600DT, L4600HST) compact utility tractor from the L series. This tractor was manufactured by the Kubota from 2011 to 2014. The Kubota L4600 is equipped with 2.2 L four-cylinder diesel engine and one of two transmissions: synchronized shuttle transmission with dry disc clutch (8 forward and 8 reverse gears) or hydrostatic transmission (L4600 HST) with infinite (3-range) forward and reverse.

The Kubota L4600 compact utility tractor used the V2203-M-E3-LB3 engine. It is a 2.2 L, 2,197 cm2, (134.1 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. This engine produced 44.5 PS (32.7 kW; 43.9 HP) at 2,600 rpm of net output power and 38.9 PS (28.6 KW; 38.4 HP) at 2,600 rpm of PTO power.

The Kubota L4600 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS and 48.0 liters (12.7 US gal.; 10.6 Imp. gal) fuel tank.

Kubota L4600 Specifications

General Specifications
ModelKubota L4600
Length3,120 mm (122.8 in)
Width1,585 mm (62.4 in)
Height2,330 mm (91.7 in)
Wheel base1,845 mm (72.6 in)
Weight L4600F: 1,410 kg (3,109 lbs)
L4600DT: 1,445 kg (3,185 lbs)
L4600HST: 1,450 kg (3,197 lbs)
Fuel tank capacity48.0 liters (12.7 US gal.; 10.6 Imp. gal)
Battery12V, CCA: 582A
Cabin typeOpen operator station with two-post ROPS
Engine
Engine modelV2203-M-E3-LB3
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement2.2 L, 2,197 cm2, (134.1 cu·in)
Bore and stroke87.0 mm X 92.4 mm (3.43 in X 3.64 in)
Horsepower44.5 PS (32.7 kW; 43.9 HP) at 2,600 rpm
Torque143.2 N·m (14.6 kg·m, 105.5 ft·lb)
StarterElectric
Oil capacity:7.6 L (8.03 US. qt, 6.69 Imp. qt.)
Coolant capacity:6.5 L (6.87 US. qt, 5.72 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesMechanical, Wet disk type
Transmission model
Transmission typeSynchronized shuttle transmission with dry disc clutch
Gears8 forward and 8 reverse
Speed Forward: 24.0 kmh (14.9 mph) Reverse: 23.0 (14.3 mph)
Transmission oil capacity40.0 L (42.27 US. qt, 35.2 Imp. qt.)
Transmission model
Transmission typeHydrostatic type
GearsInfinite (3-range) forward and reverse
Speed Forward: 25.4 kmh (15.8 mph) Reverse: 22.8 (14.2 mph)
Transmission oil capacity40.0 L (42.27 US. qt, 35.2 Imp. qt.)
Tires
Front tiresAg: 7.5L-15 (2WD), 8.3-16 (4WD)
Rear tiresAg: 14.9-24
Three-Point Hitch
CaterogyI
Control typePosition control
Lift capacity1,300 kg (2,867 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center with gear pump
Pressure2567 psi (177 bar)
Valves0 to 3
Pump flow8.4 gpm (31.8 lpm)
Total flow13.5 gpm (51.1 lpm)
Steering flow5.1 gpm (19.3 lpm)
