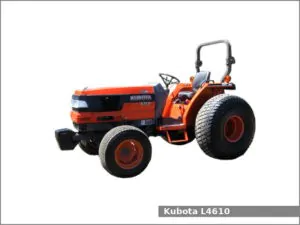

The Kubota L4610 is a 4WD compact utility tractor from the Grand L10 series. This tractor was manufactured by the Kubota from 1999 to 2002. The Kubota L4610 is equipped with a 2.2 L four-cylinder diesel engine and one of two transmissions: automatic fully synchronized transmission with dry disc clutch and 8 forward and 8 reverse gears or hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Kubota L4610 compact utility tractor used the Kubota V-2203 engine. It is a 2.2 L, 2,197 cm2, (134.1 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. This engine produced 48.4 PS (35.6 kW; 47.7 HP) at 2,700 rpm of gross output power.
The Kubota L4610 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS or Cab (option) and 35.0 liters (9.2 US gal.; 7.7 Imp. gal) fuel tank.
Following attachments are available for the Kubota L4610 compact utility tractor:
- Rear-mount Kubota RCR72-CA finish mower
- Rear-mount Kubota L372CA rotary cutter
- Kubota FL1521C tiller
- Kubota L60CA tiller
- Kubota BL80A post-hole digger
- Kubota L7554 box scraper
- Kubota LA852 loader
- Kubota BL4690 backhoe
Kubota L4610 Specifications
General Specifications | |
Model | Kubota L4610 |
Length | 2,980 mm (117.3 in) |
Width | 1,580 mm (62.2 in) |
Height | 2,150 mm (84.6 in) |
Wheel base | 1,810 mm (71.3 in) |
Weight | 1,442 kg (3180 lbs) |
Fuel tank capacity | 35.0 liters (9.2 US gal.; 7.7 Imp. gal) |
Battery | 12V, CCA: 582A |
Cabin type | Open operator station with two-post ROPS or Cab (option) |
Engine | |
Engine model | Kubota V-2203 |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 4 |
Fuel type | Diesel |
Displacement | 2.2 L, 2197 cm2, (134.1 cu·in) |
Bore and stroke | 87.0 mm X 92.4 mm (3.43 in X 3.64 in) |
Horsepower | 48.4 PS (35.6 kW; 47.7 HP) at 2,700 rpm |
Starter | Electric |
Oil type | API CC or CD |
Transmission and chassis | |
Chassis | 4×4 MFWD 4WD |
Steering type | Hydrostatic power |
Brakes | Wet disc type |
Transmission model | Glide Shift (GST) |
Transmission type | Automatic fully synchronized with dry disc clutch |
Gears | 8 forward and 8 reverse |
Speed | Forward: 26.9 kmh (16.7 mph) Reverse: 24.8 (15.4 mph) |
Transmission model | HST |
Transmission type | Hydrostatic |
Gears | Infinite (3-range) forward and reverse |
Speed | Forward: 27.8 kmh (17.3 mph) Reverse: 22.2 (13.8 mph) |
Tires | |
Front tires | Ag: 8.3-16 |
Rear tires | Ag: 14.9-24 |
Three-Point Hitch | |
Caterogy | I |
Control type | Position control, draft control (option) |
Lift capacity (at ends) | 1,050 kg (2,315 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent |
Rear PTO spped | 540 rpm |
Hydraulic system | |
Hydraulic type | Open center |
Pump flow | 9.6 gpm (36.3 lpm) |
Steering flow | 4.8 gpm (18.2 lpm) |
Total flow | 14.4 gpm (54.5 lpm) |
