Kubota L47

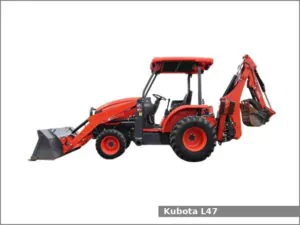

Kubota L47The Kubota L47 is a 4WD backhoe loader tractor from the L series. This tractor has been manufactured by the Kubota since 2016. The Kubota L47 is equipped with a 2.4 L four-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota L47 backhoe loader tractor used the Kubota V2403 engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 47.1 PS (34.6 kW; 46.4 HP) at 2,700 rpm of net horsepower and 33.5 PS (24.6 KW; 33.0 HP) of PTO output power.

The Kubota L47 is equipped with hydraulic type power steering, multiple wet disks brakes, four-post ROPS/FOPS and 67.0 liters (17.7 US gal.; 14.7 Imp. gal) fuel tank.

Following attachments are available for the Kubota L47 backhoe loader tractor:

  • Kubota TL1300/TL1300V loader

Kubota L47 Specifications

General Specifications
Model Kubota L47
Length (w/o 3P, loader, backhoe) 3,075 mm (121.1 in)
Width (w/o loader) 1,809 mm (71.2 in)
Height 2,415 mm (95.1 in)
Wheel base 1,841 mm (72.5 in)
Weight 1,988 kg (4383 lbs)
Fuel tank capacity 67.0 liters (17.7 US gal.; 14.7 Imp. gal)
Battery 12V, CCA: 550A
Cabin type Four-post ROPS/FOPS
Engine
Engine model Kubota V2403
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.4 L, 2,434 cm2, (148.5 cu·in)
Bore and stroke 87.0 mm X 102.4 mm (3.43 in X 4.03 in)
Horsepower 47.1 PS (34.6 kW; 46.4 HP) at 2,700 rpm
Starter Electric
Oil capacity: 8.2 L (8.66 US. qt, 7.21 Imp. qt.)
Coolant capacity: 8.2 L (8.66 US. qt, 7.21 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydraulic type power
Brakes Multiple wet disks
Differential Bevel gear
Front axle case 7.0 L (7.4 US.qts, 6.16 Imp. qts)
Transmission model –
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 22.5 kmh (14 mph) Reverse: 22.7 (14.1 mph)
Transmission oil capacity 46.0 L (12.2 US. gal, 10.1 Imp. gal.)
Tires
Front tires Industrial: 27×10.5-15
Rear tires Industrial: 15-19.5
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540
