Kubota L4701

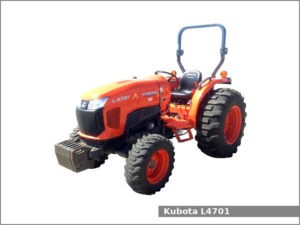

Kubota L4701The Kubota L4701 is a 2WD or 4WD compact utility tractor from the Standard L series. This tractor has been manufactured by the Kubota since 2014. The Kubota L4701 is equipped with a 2.4 L four-cylinder diesel engine and one of two transmissions: synchronized shuttle transmission with dry disc clutch (8 forward and 8 reverse gears) or hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota L4701 compact utility tractor used the Kubota V2403 engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 45.4 PS (33.4 KW; 44.8 HP) at 2,600 rpm of net horsepower and 146.2 N·m (14.9 kg·m, 107.7 ft·lb) of peak torque.

The Kubota L4701 is equipped with hydrostatic power steering, mechanical wet disc brakes, open operator station with two-post ROPS and 51.0 liters (13.5 US gal.; 11.2 Imp. gal) fuel tank.

Following attachments are available for the Kubota L4701 compact utility tractor:

  • Kubota LA765 loader
  • Kubota BH92 backhoe

Kubota L4701 Specifications

General Specifications
ModelKubota L4701
Length 2WD: 3,120 mm (122.8 in)
4WD: 3,035 mm (119.5 in)
Width1,585 mm (62.4 in)
Height2,330 mm (91.7 in)
Wheel base 2WD: 1,850 mm (72.8 in)
4WD: 1,845 mm (72.6 in)
Weight 2WD Gear trans: 1,460 kg (3,219 lbs)
4WD Gear trans: 1,495 kg (3,296 lbs)
4WD Hydro trans: 1,500 kg (3,307 lbs)
Fuel tank capacity51.0 liters (13.5 US gal.; 11.2 Imp. gal)
Battery12V, CCA: 600A
Cabin typeOpen operator station with two-post ROPS
Engine modelKubota V2403
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement2.4 L, 2,434 cm2, (148.5 cu·in)
Bore and stroke87.0 mm X 102.4 mm (3.43 in X 4.03 in)
Horsepower45.4 PS (33.4 KW; 44.8 HP) at 2,600 rpm
Torque146.2 N·m (14.9 kg·m, 107.7 ft·lb)
Oil capacity:8.2 L (8.66 US. qt, 7.21 Imp. qt.)
Coolant capacity:6.5 L (6.87 US. qt, 5.72 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesMechanical wet disc
Transmission model
Transmission typeSynchronized shuttle transmission with dry disc clutch
Gears8 forward and 8 reverse
Speed Forward: 24.0 kmh (14.9 mph) Reverse: 23.0 (14.3 mph)
Transmission oil capacity40.0 L (10.6 US. gal, 8.8 Imp. gal.)
Transmission model
Transmission typeHydrostatic
GearsInfinite (3-range) forward and reverse
Speed Forward: 25.4 kmh (15.8 mph) Reverse: 22.8 (14.2 mph)
Transmission oil capacity40.0 L (10.6 US. gal, 8.8 Imp. gal.)
Front tires Ag: 7.5L-15 (2WD), 8.3-16 (4WD)
Lawn/turf: 27×8.50-15
Industrial: 10-16.5 (4WD)
Rear tires Ag: 14.9-24
Lawn/turf: 44×18-20
Industrial: 17.5L-24 (4WD)
Three-Point Hitch
Control typePosition control
Lift capacity (at ends)1,300 kg (2,867 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with hydraulic wet disc clutch
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity40.0 L (42.27 US. qt, 35.2 Imp. qt.)
Pressure2,560 psi (176 bar)
Pump flow7.8 gpm (29.5 lpm)
Steering flow4.7 gpm (17.8 lpm)
Total flow12.5 gpm (47.3 lpm)
