Kubota L5060

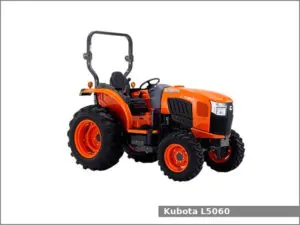

Kubota L5060The Kubota L5060 is a 4WD compact utility tractor from the L60 series. This tractor has been manufactured by the Kubota in since 2013. The Kubota L5060 is equipped with a 2.4 L four-cylinder diesel engine and glide shift transmission with 12 forward and 8 reverse gears.

The Kubota L5060 compact utility tractor used the V2403-CR-TE4 engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder turbocharged diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 50.7 PS (37.3 kW; 50.0 HP) of net horsepower and 44.6 PS (32.8 KW; 44.0 HP) at 2,700 rpm of PTO output power.

The Kubota L5060 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post foldable ROPS and 51.0 liters (13.5 US gal.; 11.2 Imp. gal) fuel tank.

Kubota L5060 Specifications

General Specifications
Model Kubota L5060
Length 3,210 mm (126.4 in)
Width 1,710 mm (67.3 in)
Height 2,490 mm (98 in)
Wheel base 1,915 mm (75.4 in)
Weight (with ROPS) 1,780 kg (3,924 lbs)
Fuel tank capacity 51.0 liters (13.5 US gal.; 11.2 Imp. gal)
Battery 12V, CCA: 582A
Cabin type Open operator station with two-post foldable ROPS
Engine
Engine model V2403-CR-TE4
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.4 L, 2,434 cm2, (148.5 cu·in)
Bore and stroke 87.0 mm X 102.4 mm (3.43 in X 4.03 in)
Horsepower 50.7 PS (37.3 kW; 50 HP)
Torque 164.2 N·m (16.7 kg·m, 121 ft·lb)
Starter Electric
Oil type SAE 10W-30 or 15W-40
Oil capacity: 9.4 L (9.93 US. qt, 8.27 Imp. qt.)
Coolant capacity: 8.2 L (8.66 US. qt, 7.21 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model GST
Transmission type Glide shift
Gears 12 forward and 8 reverse
Speed Forward: 26.5 kmh (16.5 mph) Reverse: 25.3 (15.7 mph)
Transmission oil capacity 45.0 L (11.9 US. gal, 9.9 Imp. gal.)
Tires
Front tires Ag: 9.5-16
Rear tires Ag: 14.9-26
Three-Point Hitch
Caterogy II/I
Control type Position control, draft control (option)
Lift capacity (at ends) 1,750 kg (3,859 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,000 rpm
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 45.0 L (47.55 US. qt, 39.59 Imp. qt.)
Pressure 2567 psi (177 bar)
Pump flow 9.8 gpm (37.1 lpm)
Steering flow 4.9 gpm (18.5 lpm)
Total flow 14.7 gpm (55.6 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
