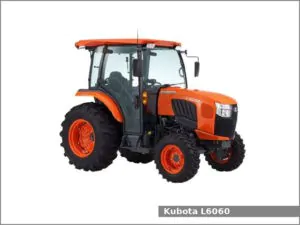

The Kubota L6060 is a 4WD compact utility tractor from the L60 series. This tractor has been manufactured by the Kubota since 2013. The Kubota L6060 is equipped with a 2.4 L four-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Kubota L6060 compact utility tractor used the V2403-CR-TE4 engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder turbocharged diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 60.9 PS (44.8 kW; 60.0 HP) of net horsepower and 53.7 PS (39.5 KW; 53.0 HP) at 2,600 rpm of PTO output power.
The Kubota L6060 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post foldable ROPS (L6060HST) or Grand Cab with air-conditioning (L6060HSTC), and 51.0 liters (13.5 US gal.; 11.2 Imp. gal) fuel tank.
Kubota L6060 Specifications
| General Specifications | |
| Model | Kubota L6060 |
| Length | 3,210 mm (126.4 in) |
| Width | 1,710 mm (67.3 in) |
| Height | 2,490 mm (98 in) |
| Wheel base | 1,915 mm (75.4 in) |
| Weight (with ROPS) | 1,340 kg (2,954 lbs) |
| Fuel tank capacity | 51.0 liters (13.5 US gal.; 11.2 Imp. gal) |
| Battery | 12V, CCA: 582A |
| Cabin type | Open operator station with two-post foldable ROPS or Grand Cab with air-conditioning (option) |
| Engine | |
| Engine model | V2403-CR-TE4 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 2.4 L, 2,434 cm2, (148.5 cu·in) |
| Bore and stroke | 87.0 mm X 102.4 mm (3.43 in X 4.03 in) |
| Horsepower | 60.9 PS (44.8 kW; 60.0 HP) |
| Torque | 195.6 N·m (19.9 kg·m, 144.2 ft·lb) |
| Starter | Electric |
| Oil type | SAE 10W-30 or 15W-40 |
| Oil capacity: | 9.4 L (9.93 US. qt, 8.27 Imp. qt.) |
| Coolant capacity: | 8.2 L (8.66 US. qt, 7.21 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Wet disc type |
| Transmission model | HST Plus |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Speed | Forward: 27.1 kmh (16.8 mph) Reverse: 24.4 (15.2 mph) |
| Transmission oil capacity | 45.0 L (11.9 US. gal, 9.9 Imp. gal.) |
| Tires | |
| Front tires | Ag: 9.5-16 |
| Rear tires | Ag: 14.9-26 |
| Three-Point Hitch | |
| Caterogy | II/I |
| Control type | Position control, draft control (option) |
| Lift capacity (at ends) | 1,750 kg (3,859 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Optional |
| Middle PTO spped | 2,000 rpm |
| Rear PTO type | Independent |
| Rear PTO spped | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 45.0 L (47.55 US. qt, 39.59 Imp. qt.) |
| Pressure | 2,567 psi (177 bar) |
| Pump flow | 9.4 gpm (35.6 lpm) |
| Steering flow | 4.7 gpm (17.8 lpm) |
| Total flow | 14.1 gpm (53.4 lpm) |
