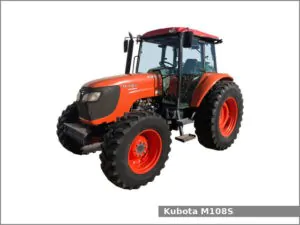

Kubota M108S

Kubota M108SThe Kubota M108S is a 2WD or 4WD row-crop tractor from the M series. This tractor was manufactured by Kubota from 2007 to 2014. The Kubota M108S is equipped with a 3.8 L (230.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with wet disc clutch and 16 forward and 16 reverse gears (24 forward and 24 reverse gears with creeper) or a partial power shift transmission with 32 forward and 32 reverse gears (48 forward and 48 reverse gears with creeper).

The Kubota M108S row-crop tractor used the Kubota V3800-DT-TI engine. It is a 3.8 L, 3,769 cm2, (230.0 cu·in) four-cylinder turbocharged intercooled diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 109.5 PS (80.5 kW; 108.0 HP) at 2,600 rpm of net output power.

The Kubota M108S is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post foldable ROPS, or the Cab with heat and air-conditioning (optional), and 175.0 liters (46.2 US gal.; 38.5 Imp. gal) fuel tank.

Following attachments are available for the Kubota M108S row-crop tractor:

  • Kubota LA1403 Height Position loader
  • Kubota LA1403 Power Position loader

Variants:

  • M108SH: 2WD with ROPS and 16-speed transmission
  • M108SDSF: 2WD with ROPS and 32-speed transmission
  • M108SHD: 4WD with ROPS and 16-speed transmission
  • M108SDS: 4WD with ROPS and 32-speed transmission
  • M108SHC: 2WD with Cab and 16-speed transmission
  • M108SHDC: 4WD with Cab and 16-speed transmission
  • M108SDSC: 4WD with Cab and 32-speed transmission

Kubota M108S Specifications

General Specifications
Model Kubota M108S
Length -)
Width 2WD: 2,280 mm (89.8 in)
4WD: 2,310 mm (91.0 in)
Height ROPS: 2,660 mm (104.7 in)
Cab: 2,690 mm (106.0 in)
Wheel base
Weight 2WD with ROPS: 2,879 kg (6,347 lbs)
2WD with Cab: 3,150 kg (6,945 lbs)
4WD with ROPS: 3,620 kg (7,980 lbs)
4WD with Cab: 3,890 kg (8,580 lbs)
Fuel tank capacity 175.0 liters (46.2 US gal.; 38.5 Imp. gal)
Battery 12V, CCA: 900A
Cabin type Two-post foldable ROPS or Cab with heat and air-conditioning (optional).
Engine
Engine model Kubota V3800-DT-TI
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.8 L, 3,769 cm2, (230.0 cu·in)
Bore and stroke 100.0 mm X 120.0 mm (3.94 in X 4.72 in)
Horsepower 109.5 PS (80.5 kW; 108.0 HP) at 2,600 rpm
Starter Electric
Oil capacity: 10.7 L (11.3 US. qt, 9.4 Imp. qt.)
Coolant capacity: 9.1 L (9.6 US. qt, 8 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Differential lock Mechanical rear (2WD) or front-and-rear (4WD)
Transmission model Swing Shift
Transmission type Partially synchronized with wet disc clutch
Gears 16 forward and 16 reverse
Transmission oil capacity 62.8 L (16.6 US. gal, 13.8 Imp. gal.)
Transmission model Swing Shift Plus Dual Speed
Transmission type Partial power shift
Gears 32 forward and 32 reverse
Transmission oil capacity 62.8 L (16.6 US. gal, 13.8 Imp. gal.)
Tires
Front tires Ag: 10.00-16 (2WD), 13.6-24 (4WD)
Rear tires Ag: 18.4-34
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at ends) 2,520 kg (5,560 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 62.8 L (66.36 US. qt, 55.26 Imp. qt.)
Pressure 2844 psi (196.1 bar)
Valves 1 to 3
Pump flow 17.2 gpm (65.1 lpm)
Steering flow 12.1 gpm (45.8 lpm)
Total flow 29.3 gpm (110.9 lpm)
