Kubota M4030SU

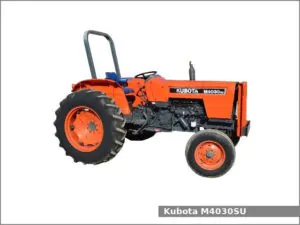

Kubota M4030SUThe Kubota M4030SU is a 2WD utility tractor from the M series. This tractor was manufactured by Kubota from 1988 to 1998. The Kubota M4030SU is equipped with a 2.4 L (148.7 cu·in) five-cylinder diesel engine and a transmission with 8 forward and 2 reverse gears (16 forward and 4 reverse with creeper).

The Kubota M4030SU utility tractor used the Kubota F2402-DI-A engine. It is a 2.4 L, 2,436 cm2, (148.7 cu·in) five-cylinder natural aspirated diesel engine with direct injection fuel system. This engine produced 51.7 PS (38.0 kW; 51.0 HP) of output power.

The Kubota M4030SU is equipped with power steering, mechanical wet disc brakes, open operator station with two-post ROPS, and 64.0 liters (16.9 US gal.; 14.1 Imp. gal) fuel tank.

Kubota M4030SU Specifications

General Specifications
Model Kubota M4030SU
Length 3,410 mm (134.3 in)
Width
Height
Wheel base 1,990 mm (78.3 in)
Weight
Fuel tank capacity 64.0 liters (16.9 US gal.; 14.1 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota F2402-DI-A
Engine type Four-stroke, liquid-cooled, inline
Cylinders 5
Fuel type Diesel
Displacement 2.4 L, 2,436 cm2, (148.7 cu·in)
Bore and stroke
Horsepower 51.7 PS (38.0 kW; 51.0 HP)
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Mechanical wet disc
Transmission model
Transmission type
Gears 8 forward and 2 reverse
Speed Forward: 25.3 kmh (15.7 mph) Reverse: 10.8 (6.7 mph)
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 14.9-28
Three-Point Hitch
Caterogy I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
