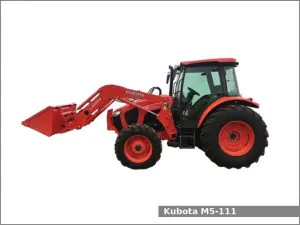

Kubota M5-111

Kubota M5-111The Kubota M5-111 is a 2WD or 4WD utility tractor from the M5 series. This tractor has been manufactured by Kubota since 2015. The Kubota M5-111 is equipped with a 3.8 L (230.0 cu·in) four-cylinder diesel engine and one of three transmissions: a partially synchronized transmission with 8 forward and 8 reverse gears, a partially synchronized transmission with 12 forward and 12 reverse gears or a two-speed power shift transmission with 24 forward and 24 reverse gears.

The Kubota M5-111 utility tractor used the Kubota V3800CR-TIEF4 engine. It is a 3.8 L, 3,769 cm2, (230.0 cu·in) four-cylinder turbocharged intercooled diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 107 PS (78.7 kW; 105.5 HP) at 2,400 rpm of gross output power.

The Kubota M5-111 is equipped with power steering, hydraulic wet disc brakes, two-post foldable ROPS or Ultra Grand Cab II (optional) and 104.8 liters (27.7 US gal.; 23.1 Imp. gal) fuel tank.

Kubota M5-111 Specifications

General Specifications
Model Kubota M5-111
Length 2WD: 3,970 mm (156.3 in)
4WD: 3,930 mm (154.7 in)
Width 2WD: 1,980 mm (78 in)
4WD: 2,000 mm (78.7 in)
Height ROPS: 2,510 mm (98.8 in)
Cab: 2,540 mm (100 in)
Wheel base 2WD: 2,280 mm (89.8 in)
4WD: 2,250 mm (88.6 in)
Ground clearance 2WD: 520 mm (20.5 in)
4WD: 500 mm (19.7 in)
Weight 2WD ROPS: 2,610 kg (5,755 lbs)
4WD ROPS: 2,800 kg (6,175 lbs)
2WD Cab: 3,000 kg (6,615 lbs)
4WD Cab: 3,190 kg (7,035 lbs)
Fuel tank capacity 104.8 liters (27.7 US gal.; 23.1 Imp. gal)
Battery 12V, CCA 900A
Cabin type Two-post foldable ROPS or Ultra Grand Cab II (optional)
Engine
Engine model Kubota V3800CR-TIEF4
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.8 L, 3,769 cm2, (230.0 cu·in)
Bore and stroke 100.0 mm X 120.0 mm (3.94 in X 4.72 in)
Compression ratio 17.0:1
Horsepower 107 PS (78.7 kW; 105.5 HP) at 2,400 rpm (ROPS), 2600 rpm (Cab)
Starter Electric
Oil capacity: 10.7 L (11.3 US. qt, 9.4 Imp. qt.)
Coolant capacity: 10.4 L (11 US. qt, 9.2 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Final drive Inboard planetary
Differential lock Mechanical rear
Transmission model
Transmission type Partially synchronized with wet disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 29.9 kmh (18.6 mph)
Transmission oil capacity 60.0 L (15.9 US. gal, 13.2 Imp. gal.)
Transmission model
Transmission type Partially synchronized with dry disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 38.0 kmh (23.6 mph)
Transmission model
Transmission type Two-speed power shift with wet disc clutch
Gears 24 forward and 24 reverse
Speed Forward: 37.7 kmh (23.4 mph)
Tires
Front tires Ag: 7.5-18 (2WD), 11.2-24 (4WD)
Rear tires Ag: 18.4-28
Three-Point Hitch
Category II
Control type Position control and top-link draft sensing
Lift capacity (at 610 mm / 24 in) Standard: 2,350 kg (5,180 lbs)
Optional: 3,300 kg (7,275 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540 or 540/540E rpm (optional)
Hydraulic system
Hydraulic type Open center
Valves 1 to 3
Pump flow ROPS: 15.9 gpm (60.2 lpm)
Cab: 17.0 gpm (64.4 lpm)
Steering flow ROPS: 5.4 gpm (20.4 lpm)
Cab: 6.1 gpm (23.1 lpm)
