Kubota M5140

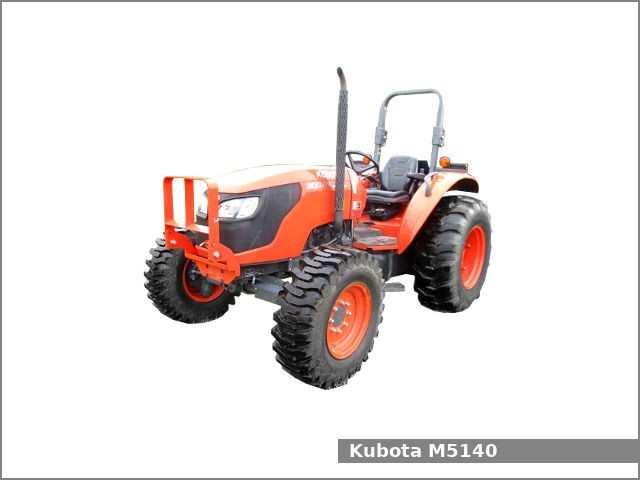

Kubota M5140The Kubota M5140 is a 2WD or 4WD utility tractor from the M series. This tractor was manufactured by Kubota from 2010 to 2020. The Kubota M5140 is equipped with a 2.4 L (148.5 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with dry plate clutch and 8 forward and 8 reverse gears or a power shuttle transmission with wet disc clutch and 8 forward and 8 reverse gears.

The Kubota M5140 utility tractor used the Kubota V2403-DI-T engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder turbocharged diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. This engine produced 52.8 PS (38.8 kW; 52.0 HP) of net output power.

The Kubota M5140 is equipped with hydrostatic power steering, mechanical wet disc brakes, two-post ROPS or Ultra Grand Cab with heat and air-conditioning (optional), 70.0 liters (18.5 US gal.; 15.4 Imp. gal) fuel tank for ROPS version or 90.0 liters (23.8 US gal, 19.8 Imp. gal) or Cab version.

Following attachments are available for the Kubota M5140 utility tractor:

  • Kubota LA1153 Height Position loader
  • Kubota LA1153 Power Position loader

Kubota M5140 Specifications

General Specifications
Model Kubota M5140
Length 2WD with ROPS: 3,560 mm (140.4 in)
2WD with Cab: 3,620 mm (142.7 in)
4WD with ROPS: 3,440 mm (135.4 in)
4WD with Cab: 3,500 mm (138.0 in)
Width
Height ROPS: 2,080 mm (81.9 in)
Cab: 2,140 mm (84.4 in)
Wheel base
Weight 2WD with ROPS: 1,920 kg (4,233 lbs)
2WD with Cab: 2,200 kg (4,850 lbs)
4WD with ROPS: 2,060 kg (4,550 lbs)
4WD with Cab: 2,340 kg (5,160 lbs)
Fuel tank capacity ROPS: 70.0 liters (18.5 US gal.; 15.4 Imp. gal)
Cab: 90.0 liters (23.8 US gal, 19.8 Imp. gal)
Battery 12V
Cabin type Two-post ROPS or Ultra Grand Cab with heat and air-conditioning (optional)
Engine
Engine model Kubota V2403-DI-T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.4 L, 2,434 cm2, (148.5 cu·in)
Bore and stroke 87.0 mm X 102.0 mm (3.43 in X 4.02 in)
Horsepower 52.8 PS (38.8 kW; 52 HP) at rpm
Starter Electric
Oil capacity: 8.0 L (8.5 US. qt, 7 Imp. qt.)
Coolant capacity: 6.2 L (6.6 US. qt, 5.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Mechanical wet disc
Differential lock Rear standard
Transmission model Synchro-Shuttle
Transmission type Partially synchronized with dry plate clutch
Gears 8 forward and 8 reverse
Transmission oil capacity 40.0 L (10.6 US. gal, 8.8 Imp. gal.)
Transmission model Hydraulic-Shuttle
Transmission type Power shuttle with wet disc clutch
Gears 8 forward and 8 reverse
Transmission oil capacity 40.0 L (10.6 US. gal, 8.8 Imp. gal.)
Tires
Front tires Ag: 6.50-15 (2WD), 9.5-24 (4WD)
Rear tires Ag: 14.9-28
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at ends) 1,905 kg (4,200 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 40.0 L (42.27 US. qt, 35.2 Imp. qt.)
Valves 1 to 3
Pump flow 11.0 gpm (41.6 lpm)
Steering flow 6.1 gpm (23.1 lpm)
Total flow 17.1 gpm (64.7 lpm)
