Kubota M7060

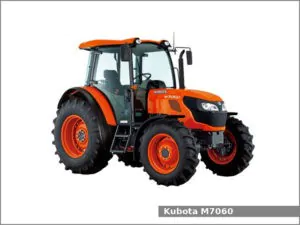

Kubota M7060The Kubota M7060 is a 2WD or 4WD utility tractor from the M60 series. This tractor has been manufactured by the Kubota since 2013. The Kubota M7060 is equipped with a 3.3 L four-cylinder turbocharged diesel engine and power shuttle transmission with wet disc clutch and 8 forward and 8 reverse or 12 forward and 12 reverse gears.

The Kubota M7060 utility tractor used the V3307-CR-TE4 engine. It is a 3.3 L, 3,331 cm2, (203.3 cu·in) four-cylinder turbocharged diesel engine with 94.0 mm (3.7 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 72.1 PS (53.0 kW; 71.0 HP) net horsepower and 64.9 PS (47.7 KW; 64.0 HP) of PTO output power.

The Kubota M7060 is equipped with hydrostatic power steering, mechanically operated (F8/R8 model) or hydraulically operated (F12/R12 model) wet disc brakes, two-post foldable ROPS or Ultra Grand Cab with air-conditioning and 70.0 liters (18.5 US gal.; 15.4 Imp. gal) fuel tank for ROPS version and 90.0 liters (23.8 US. gal, 19.8 Imp. gal.) for Cab version. The Kubota M7060 tractor can be equipped with the Kubota LA1154 loader.

Kubota M7060 versions:

  • M7060HF: 2WD ROPS F8/R8 model
  • M7060HFC: 2WD Cab F8/R8 model
  • M7060HD: 4WD ROPS F8/R8 model
  • M7060HDC: 4WD Cab F8/R8 modeld
  • M7060HD12: 4WD ROPS F12/R12 model
  • M7060HDC12: 4WD Cab F12/R12 model

Kubota M7060 Specifications

General Specifications
ModelKubota M7060
Length 2WD: 3,625 mm (142.7 in)
4WD: 3,505 mm (138.0 in)
Width1,860 mm (73.2 in)
Height2,565 mm (101 in)
Wheel base 2WD: 2,145 mm (84.4 in)
4WD: 2,110 mm (83.1 in)
Weight 2WD Cab: 2,380 kg (5,247 lbs)
4WD Cab: 2,440 kg (5,380 lbs)
4WD ROPS: 2,2800 kg (5,027 lbs)
Fuel tank capacity ROPS: 70.0 liters (18.5 US gal.; 15.4 Imp. gal)
Cab: 90.0 liters (23.8 US. gal, 19.8 Imp. gal.)
Battery12V CCA: 900A
Cabin typeTwo-post foldable ROPS or Ultra Grand Cab with air-conditioning
Engine
Engine modelV3307-CR-TE4
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement3.3 L, 3,331 cm2, (203.3 cu·in)
Bore and stroke94.0 mm X 120.0 mm (3.7 in X 4.72 in)
Horsepower72.1 PS (53.0 kW; 71.0 HP)
Torque258 N·m (26.3 kg·m, 190.1 ft·lb)
StarterElectric
Oil capacity:12.0 L (12.68 US. qt, 10.56 Imp. qt.)
Coolant capacity:8.0 L (8.45 US. qt, 7.04 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power
Brakes Mechanically operated wet disc (F8/R8 model)
Hydraulically operated wet disc (F12/R12 model)
DifferentialBevel gears with differential lock (Rear)
Transmission model
Transmission typePower shuttle with wet disc clutch
Gears8 forward and 8 reverse
Speed Forward: 29.0 kmh (18 mph) Reverse: 28.5 (17.7 mph)
Transmission model
Transmission typePower shuttle with wet disc clutch
Gears12 forward and 12 reverse
Speed Forward: 38.9 kmh (24.2 mph) Reverse: 38.3 (23.8 mph)
Tires
Front tiresAg: 7.5-16 (2WD), 9.5-16 (4WD)
Rear tiresAg: 16.9-30
Three-Point Hitch
CaterogyII/I
Control typePosition control and top-link draft sensing
Lift capacity1,900 kg (4,190 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with electro-hydraulic clutch
Rear PTO spped540/540E rpm
Hydraulic system
Hydraulic typeOpen center
Pump flow F8/R8 model: 11.0 gpm (41.6 lpm)
F12/R12 model: 16.2 gpm (61.5 lpm)
