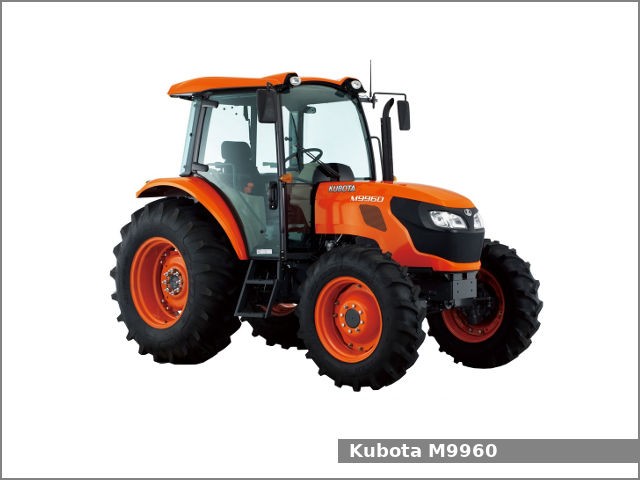

Kubota M9960

Kubota M9960The Kubota M9960 is a 2WD or 4WD utility tractor from the M60 series. This tractor was manufactured by Kubota from 2013 to 2016. The Kubota M9960 is equipped with a 3.8 L four-cylinder diesel engine and three variants of transmissions: power shuttle transmission with 8 forward and 8 reverse gears (four synchronized gears in two ranges), power shuttle transmission with 12 forward and 12 reverse gears (six synchronized gears in two ranges) or 2-speed power shuttle transmission with 24 forward and 24 reverse gears (six synchronized gears in two ranges with two-speed power shift)

The Kubota M9960 utility tractor used the Kubota V3800-CR-TIE4 engine. It is a 3.8 L, 3769 cm2, (230 cu·in) four-cylinder diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 101.5 PS (74.6 kW; 100.0 HP) of net output power and 351.3 N·m (35.8 kg·m, 258.9 ft·lb) of torque.

The Kubota M9960 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post foldable ROPS or Ultra Grand Cab with air-conditioning and 90.0 liters (23.8 US gal.; 19.8 Imp. gal) fuel tank for ROPS version or 110.0 liters (29.0 US gal, 24.2 Imp. gal) for Cab version. This tractor could be used with the Kubota LA1353A loader.

The Kubota M9960 variants:

  • M9960HF: 2WD with ROPS and 8-speed transmission
  • M9960HFC: 2WD with Cab and 8-speed transmission
  • M9960HD: 4WD with ROPS and 8-speed transmission
  • M9960HDC: 4WD with Cab and 8-speed transmission
  • M9960HD12: 4WD with ROPS and 12-speed transmission
  • M9960HDC12: 4WD with Cab and 12-speed transmission
  • M9960HDC24: 4WD with Cab and 24-speed transmission

Kubota M9960 Specifications

General Specifications
Model Kubota M9960
Length (4WD) 3,955 mm (155.7 in)
Width (4WD) 1,975 mm (77.8 in)
Height (4WD) 2,560 mm (100.8 in)
Wheel base (4WD) 2,250 mm (88.6 in)
Weight (4WD) 3,320 kg (7,320 lbs)
Fuel tank capacity ROPS: 90.0 liters (23.8 US gal.; 19.8 Imp. gal)
Cab: 110.0 liters (29.0 US gal, 24.2 Imp. gal)
Battery 12V, CCA: 900A
Cabin type Two-post foldable ROPS or Ultra Grand Cab with air-conditioning
Engine
Engine model Kubota V3800-CR-TIE4
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.8 L, 3769 cm2, (230 cu·in)
Bore and stroke 100.0 mm X 120.0 mm (3.94 in X 4.72 in)
Horsepower 101.5 PS (74.6 kW; 100.0 HP)
Torque 351.3 N·m (35.8 kg·m, 258.9 ft·lb)
Starter Electric
Oil capacity: 10.7 L (11.3 US. qt, 9.4 Imp. qt.)
Coolant capacity: 9.0 L (9.5 US. qt, 7.9 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Differential Bevel gears with differential lock (rear)
Transmission model
Transmission type Power shuttle with wet disc clutch
Gears 8 forward and 8 reverse
Transmission model
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Transmission model
Transmission type 2-speed power shift with wet disc clutch
Gears 24 forward and 24 reverse
Tires
Front tires Ag: 7.50-18 (2WD), 12.4-24 (4WD)
Rear tires Ag: 18.4-30
Three-Point Hitch
Caterogy II
Control type Position, draft (top link sensing) and mix control
Lift capacity (at 610 mm / 24 in) 2,100 kg (4,630 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO spped 540, 540/540E, 540/1,000 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,840 psi (196 bar)
Valves 1 to 3
Pump flow 17.0 gpm (64.4 lpm)
