Kubota MX4700

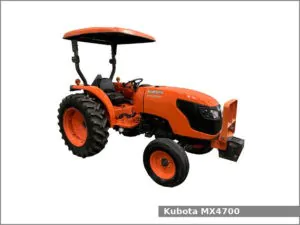

Kubota MX4700The Kubota MX4700 is a 2WD or 4WD utility tractor from the MX series. This tractor was manufactured by Kubota from 2009 to 2014. The Kubota MX4700 is equipped with a 2.4 L four-cylinder diesel engine and one of two transmissions: partially synchronized transmission with dry disc clutch and 8 forward and 8 reverse gears or hydrostatic transmission with infinite (3-range) forward and reverse.

The Kubota MX4700 utility tractor used the Kubota V2403 engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 48.8 PS (35.9 kW; 48.0 HP) at 2,700 rpm of output power.

The Kubota MX4700 is equipped with hydrostatic power steering, mechanical wet disc brakes, two-post foldable ROPS and 48.0 liters (12.7 US gal.; 10.6 Imp. gal) fuel tank.

Following attachments are available for the Kubota MX4700 utility tractor:

  • Kubota LA844 loader
  • Kubota BH92 backhoe

The Kubota MX4700 variants:

  • MX4700F: 2WD with gear type transmission
  • MX4700DT: 4WD with gear type transmission
  • MX4700HST: 4WD with hydrostatic transmission

Kubota MX4700 Specifications

General Specifications
ModelKubota MX4700
Length 2WD: 3,240 mm (127.6 in)
4WD: 3,110 mm (122.8 in)
Width1,770 mm (69.7 in)
Height2,430 mm (95.7 in)
Wheel base1,890 mm (74.4 in)
Weight 2WD gear type: 1,525 kg (3,362 lbs)
4WD gear type: 1,640 kg (3,616 lbs)
4WD hydro type: 1,715 kg (3,770 lbs)
Fuel tank capacity48.0 liters (12.7 US gal.; 10.6 Imp. gal)
Battery12V, CCA: 582A
Cabin typeTwo-post foldable ROPS
Engine modelKubota V2403
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement2.4 L, 2434 cm2, (148.5 cu·in)
Bore and stroke87.0 mm X 102.4 mm (3.43 in X 4.03 in)
Horsepower48.8 PS (35.9 kW; 48.0 HP) at 2,700 rpm
Oil capacity:8.0 L (8.5 US. qt, 7 Imp. qt.)
Coolant capacity:7.0 L (7.4 US. qt, 6.2 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesMechanical wet disc
Differential lockRear standard
Transmission modelSynchro Shuttle
Transmission typePartially synchronized with dry disc clutch
Gears8 forward and 8 reverse
Speed Forward: 25.7 kmh (16 mph) Reverse: 23.7 (14.7 mph)
Transmission oil capacity44.0 L (11.6 US. gal, 9.7 Imp. gal.)
Transmission modelHST
Transmission typeHydrostatic
GearsInfinite (3-range) forward and reverse
Speed Forward: 25.9 kmh (16.1 mph) Reverse: 23.3 (14.5 mph)
Front tiresAg: 7.5L-15. (2WD), 9.5-16 (4WD)
Rear tiresAg: 14.9-26
Three-Point Hitch
Control typePosition control
Lift capacity (at ends)1,300 kg (2,870 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO spped540 rpm
Hydraulic system
Hydraulic typeOpen center
Hydraulic capacity44.0 L (46.5 US. qt, 38.7 Imp. qt.)
Pressure0 to 3 psi (0 bar)
Pump flow9.5 gpm (36 lpm)
Steering flow4.9 gpm (18.5 lpm)
Total flow14.4 gpm (54.5 lpm)
