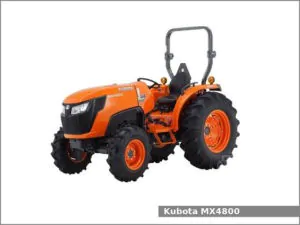

The Kubota MX4800 is a 2WD or 4WD utility tractor from the MX series. This tractor has been manufactured by the Kubota since 2014. The Kubota MX4800 is equipped with a 2.4 L four-cylinder diesel engine and hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Kubota MX4800 utility tractor used the Kubota V2403-CR-E4 engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 47.6 PS (35.0 kW; 46.9 HP) at 2,700 rpm of net horsepower for gear type version and 46.9 PS (34.5 KW; 46.3 HP) at 2,700 rpm of net horsepower for hydro type version.
The Kubota MX4800 is equipped with hydrostatic power steering, mechanical, wet disk type brakes, open operator station with two-post ROPS and 51.0 liters (13.5 US gal.; 11.2 Imp. gal) fuel tank.
Following attachments are available for the Kubota MX4800 utility tractor:
- Kubota LA1065 loader
- Kubota BH92 backhoe
Kubota MX4800 Specifications
| General Specifications | |
| Model | Kubota MX4800 |
| Length |
2WD: 3,245 mm (127.8 in) 4WD: 3,180 mm (125.2 in) |
| Width | 1,770 mm (69.7 in) |
| Height | 2,430 mm (95.7 in) |
| Wheel base | 1,895 mm (74.6 in) |
| Weight |
2WD with gear trans: 1,574 kg (3,469 lbs) 4WD with gear trans (MX4800DT): 1,684 kg (3,712 lbs) 4WD with hydro trans (MX4800HST): 1,692 kg (3,729 lbs) |
| Fuel tank capacity | 51.0 liters (13.5 US gal.; 11.2 Imp. gal) |
| Battery | 12V, CCA: 600A |
| Cabin type | Open operator station with two-post ROPS |
| Engine | |
| Engine model | Kubota V2403-CR-E4 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 2.4 L, 2,434 cm2, (148.5 cu·in) |
| Bore and stroke | 87.0 mm X 102.4 mm (3.43 in X 4.03 in) |
| Horsepower |
Gear trans: 47.6 PS (35.0 kW; 46.9 HP) at 2,700 rpm Hydro trans: 46.9 PS (34.5 KW; 46.3 HP) at 2,700 rpm |
| Torque | 157.7 N·m (16.1 kg·m, 116.2 ft·lb) at rpm |
| Starter | Electric |
| Oil capacity: | 8.2 L (8.66 US. qt, 7.21 Imp. qt.) |
| Coolant capacity: | 6.5 L (6.87 US. qt, 5.72 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Mechanical, Wet disk type |
| Transmission model | – |
| Transmission type | Sync shuttle with dry type single stage clutch |
| Gears | 8 forward and 8 reverse |
| Speed | Forward: 25.9 kmh (16.1 mph) Reverse: 23.7 (14.7 mph) |
| Transmission oil capacity | 44.0 L (11.6 US. gal, 9.7 Imp. gal.) |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Speed | Forward: 25.9 kmh (16.1 mph) Reverse: 23.3 (14.5 mph) |
| Transmission oil capacity | 44.0 L (11.6 US. gal, 9.7 Imp. gal.) |
| Tires | |
| Front tires | Ag: 7.5L- 5 (2WD), 9.5-16 (4WD) |
| Rear tires | Ag: 14.9-26 |
| Three-Point Hitch | |
| Caterogy | II/I |
| Control type | Position control, draft control (option) |
| Lift capacity (at ends) | 1,300 kg (2,867 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent with electro-hydraulic wet disc clutch |
| Rear PTO spped | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Hydraulic capacity | 44.0 L (46.49 US. qt, 38.71 Imp. qt.) |
| Pressure | 2,560 psi (176 bar) |
| Valves | 1 to 3 |
| Pump flow | 9.5 gpm (36.0 lpm) |
| Steering flow | 4.9 gpm (18.5 lpm) |
| Total flow | 14.4 gpm (54.5 lpm) |
