Kubota MX5100

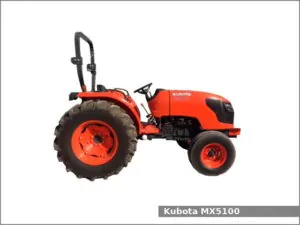

Kubota MX5100The Kubota MX5100 is a 2WD or 4WD utility tractor from the MX series. This tractor was manufactured by Kubota from 2009 to 2014. The Kubota MX5100 is equipped with a 2.4 L four-cylinder diesel engine and one of two transmissions: partially synchronized transmission with dry disc clutch and 8 forward and 8 reverse gears or hydrostatic transmission with infinite (3-range) forward and reverse gears.

The Kubota MX5100 utility tractor used the Kubota V2403-M-T engine. It is a 2.4 L, 2,434 cm2, (148.5 cu·in) four-cylinder turbocharged diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 102.4 mm (4.03 in) of the piston stroke. This engine produced 52.9 PS (38.9 kW; 52.2 HP) of maximum output power.

The Kubota MX5100 is equipped with hydrostatic power steering, mechanical wet disc brakes, two-post foldable ROPS and 50.0 liters (13.2 US gal.; 11 Imp. gal) fuel tank.

Following attachments are available for the Kubota MX5100 utility tractor:

  • Kubota LA844 loader
  • Kubota BH92 backhoe

The Kubota MX5100 variants:

  • MX5100F: 2WD with gear type transmission
  • MX5100DT: 4WD with gear type transmission
  • MX5100HST: 4WD with hydro type transmission

Kubota MX5100 Specifications

General Specifications
Model Kubota MX5100
Length 2WD: 3,240 mm (127.6 in)
4WD: 3,110 mm (122.8 in)
Width 1,770 mm (69.7 in)
Height 2,430 mm (95.7 in)
Wheel base 1,890 mm (74.4 in)
Weight 2WD with gear: 1,530 kg (3,373 lbs)
4WD with gear: 1,640 kg (3,620 lbs)
4WD with hydro: 1,710 kg (3,775 lbs)
Fuel tank capacity 50.0 liters (13.2 US gal.; 11 Imp. gal)
Battery 12V, CCA: 582A
Cabin type Two-post foldable ROPS.
Engine
Engine model Kubota V2403-M-T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.4 L, 2,434 cm2, (148.5 cu·in)
Bore and stroke 87.0 mm X 102.4 mm (3.43 in X 4.03 in)
Horsepower 52.9 PS (38.9 kW; 52.2 HP)
Starter Electric
Oil capacity: 7.6 L (8 US. qt, 6.7 Imp. qt.)
Coolant capacity: 7.5 L (7.9 US. qt, 6.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Mechanical wet disc
Differential lock Rear standard
Transmission model Synchro Shuttle
Transmission type Partially synchronized with dry disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 25.7 kmh (16 mph) Reverse: 23.7 (14.7 mph)
Transmission model HST
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Speed Forward: 25.9 kmh (16.1 mph) Reverse: 23.3 (14.5 mph)
Tires
Front tires Ag: 7.5L-15 (2WD), 9.5-16 (4WD)
Lawn/turf: 29×12.50-15, 305R343
Industrial: 12-16.5 (4WD)
Rear tires Ag: 14.9-26
Lawn/turf: 44×18-20, 610R470
Industrial: 17.5L-24 (4WD)
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at ends) 1,300 kg (2,870 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 43.9 L (46.39 US. qt, 38.63 Imp. qt.)
Valves 0 to 3
Pump flow 9.2 gpm (34.8 lpm)
Steering flow 4.8 gpm (18.2 lpm)
Total flow 14.0 gpm (53 lpm)
