Kubota T1400

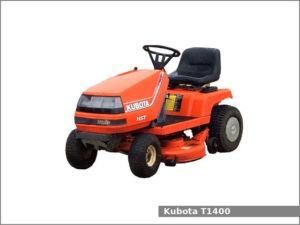

Kubota T1400The Kubota T1400 is a 2WD lawn and garden tractor from the T series. This tractor was manufactured by Kubota from 1987 to 1996. The Kubota T1400 is equipped with a 0.4 L single-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Kubota T1400 lawn tractor used the Kubota GH400 engine. It is a 0.4 L, 389 cm2, (23.7 cu·in) single-cylinder natural aspirated gasoline engine with 84.2 mm (3.31 in) of the cylinder bore and 70.0 mm (2.76 in) of the piston stroke. This engine produced 13.7 PS (10.1 kW; 13.5 HP) of output power.

The Kubota T1400 is equipped with manual steering, open operator station and 8.3 liters (2.2 US gal.; 1.8 Imp. gal) fuel tank.

Following attachments are available for the Kubota T1400 lawn tractor:

  • Mid-mount Kubota RC40LT: 40 in (1,010 mm) mower deck with 2-blades
  • Kubota T2083 blade

Kubota T1400 Specifications

General Specifications
Model Kubota T1400
Length 1,700 mm (66.9 in)
Width 1,320 mm (52 in)
Height 1,030 mm (40.6 in)
Wheel base 1,190 mm (46.9 in)
Weight 230 kg (507 lbs)
Fuel tank capacity 8.3 liters (2.2 US gal.; 1.8 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kubota GH400
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 389 cm2, (23.7 cu·in)
Bore and stroke 84.2 mm X 70.0 mm (3.31 in X 2.76 in)
Horsepower 13.7 PS (10.1 kW; 13.5 HP) at rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.0 kmh (5.6 mph) Reverse: 4.2 (2.6 mph)
Tires
Front tires Lawn/turf: 14×5.00-5
Rear tires Lawn/turf: 18×8.50-8
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped
