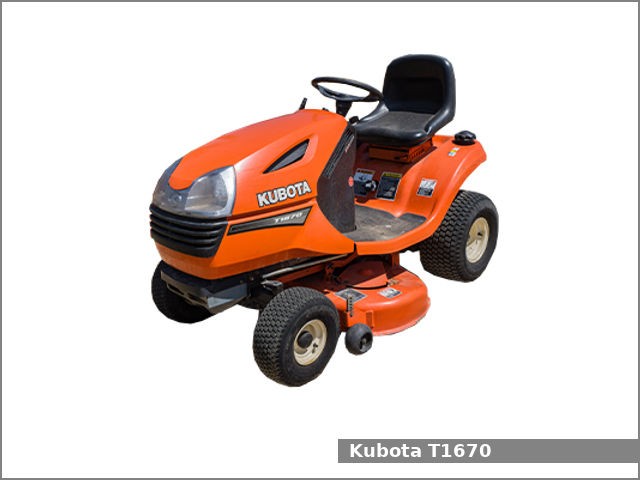

Kubota T1670

Kubota T1670The Kubota T1670 is a 2WD lawn and garden tractor from the T series. This tractor was manufactured by Kubota from 2002 to 2007. The Kubota T1670 is equipped with a 0.4 L (26.0 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota T1670 lawn tractor used the Kohler CV15S engine. It is a 0.4 L, 426 cm2, (26.0 cu·in) single-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 15.2 PS (11.2 kW; 15.0 HP) of output power.

The Kubota T1670 is equipped with the sector and pinion steering, disc brakes, open operator station and 15.0 liters (4 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for the Kubota T1670 lawn tractor:

  • Mid-mount Kubota RCK44LTB: 44 in (1,110 mm) mower deck
  • Front-mount Kubota T2090: 44 in (1,110 mm) blade
  • Front-mount Kubota T2740: 40 in (1,010 mm) snowblower

Kubota T1670 Specifications

General Specifications
Model Kubota T1670
Length 1,720 mm (67.7 in)
Width 900 mm (35.4 in)
Height 1,100 mm (43.3 in)
Wheel base 1,200 mm (47.2 in)
Weight 253 kg (558 lbs)
Fuel tank capacity 15.0 liters (4 US gal.; 3.3 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler CV15S
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 426 cm2, (26.0 cu·in)
Bore and stroke 90.0 mm X 67.0 mm (3.54 in X 2.64 in)
Horsepower 15.2 PS (11.2 kW; 15.0 HP)
Starter Electric
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual, sector and pinion
Brakes Disc
Transmission model –
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.0 kmh (5.6 mph) Reverse: 4.0 (2.5 mph)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 20×10.00-8
