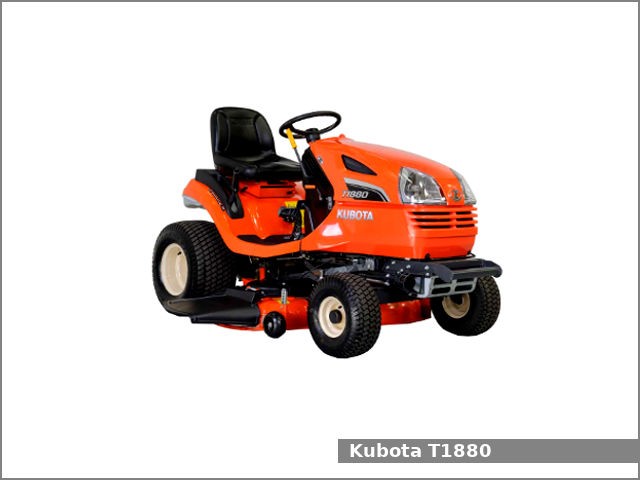

Kubota T1880

Kubota T1880The Kubota T1880 is a 2WD lawn tractor from the T series. This tractor was manufactured by Kubota from 2008 to 2019. The Kubota T1880 is equipped with a 0.6 L single-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Kubota T1880 lawn tractor used the GH540V engine. It is a 0.6 L, 597 cm2, (36.4 cu·in) single-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18.0 HP) at rpm of maximum output power.

The Kubota T1880 is equipped with manual steering, disc brakes, open operator station and 15.0 liters (4 US gal.; 3.3 Imp. gal) or 13.5 liters (3.6 US gal, 3 Imp. gal) fuel tank.

Following attachments are available for the Kubota T1880 lawn tractor:

  • Mid-mount Kubota RCK42-LT20 42 in (1,060 mm) mower deck with 2-blade and manual lift
  • Front-mount Kubota 48 in (1,210 mm) blade with manual lift
  • Front-mount Kubota 46 in (1,160 mm) dual-stage snowblower

Kubota T1880 Specifications

General Specifications
ModelKubota T1880
Length Early: 1,840 mm (72.4 in)
Later: 1,955 mm (77.0 in)
Width Early: 1,390 mm (54.7 in)
Later: 1,360 mm (53.5 in)
Height1,090 mm (42.9 in)
Wheel base1,290 mm (50.8 in)
Weight Early: 290 kg (640 lbs)
Later: 280 kg (620 lbs)
Fuel tank capacity Early: 15.0 liters (4.0 US gal; 3.3 Imp. gal)
Later: 13.5 liters (3.6 US gal, 3.0 Imp. gal)
Cabin typeOpen operator station
Engine modelGH540V
Engine typeFour-stroke, air-cooled, inline
Fuel typeGasoline
Displacement0.6 L, 597 cm2, (36.4 cu·in)
Bore and stroke89.0 mm X 86.0 mm (3.5 in X 3.39 in)
Horsepower18.2 PS (13.4 kW; 18.0 HP)
Oil capacity:1.5 L (1.6 US. qt, 1.3 Imp. qt.)
Spark plugChampion RC12YC
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
Transmission model
Transmission typeBelt-driven hydrostatic
GearsInfinite (3-range) forward and reverse
Speed Forward: 9.0 kmh (5.6 mph) Reverse: 5.0 (3.1 mph)
Transmission oil capacity2.75 L (0.7 US. gal, 0.6 Imp. gal.)
Front tiresLawn/turf: 15×6.00-6
Rear tiresLawn/turf: 22×11.00-10
