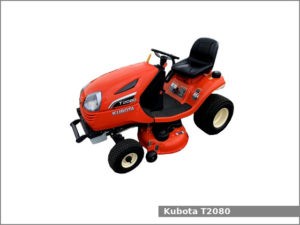

The Kubota T2080 is a 2WD lawn tractor from the T series. This tractor was manufactured by Kubota from 2008 to 2019. The Kubota T2080 is equipped with a 0.7 L two-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.
The Kubota T2080 is equipped with manual steering, disc brakes, open operator station, 15.0 liters (4 US gal.; 3.3 Imp. gal) or 13.5 liters (3.6 US gal, 3 Imp. gal) fuel tank.
The tractor could be equipped with the following engines:
- GH710V for early version. It is a 0.7 L, 725 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 20.3 PS (14.9 KW; 20.0 HP) of output power.
- GH737V for later version. It is a 0.7 L, 725 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine. The cylinder bore is 83.0 mm (3.27 in) and the piston stroke is 67.0 mm (2.64 in). This engine produced 20.3 PS (14.9 KW; 20.0 HP) of output power.
Following attachments are available for the Kubota T2080 lawn tractor:
- Mid-mount Kubota RCK42-LT20 42 in (1,060 mm) mower deck with 2-blade and manual lift
- Front-mount Kubota 48 in (1,210 mm) blade with manual lift
- Front-mount Kubota 46 in (1,160 mm) dual-stage snowblower
Kubota T2080 Specifications
| General Specifications | |
| Model | Kubota T2080 |
| Length | Early: 1,840 mm (72.4 in) Later: 1,955 mm (77.0 in) |
| Width | Early: 1,390 mm (54.7 in) Later: 1,360 mm (53.5 in) |
| Height | 1,120 mm (44.1 in) |
| Wheel base | 1,290 mm (50.8 in) |
| Weight | Early: 280 kg (617 lbs) Later: 295 kg (650 lbs) |
| Fuel tank capacity | Early: 15.0 liters (4.0 US gal; 3.3 Imp. gal) Later: 13.5 liters (3.6 US gal, 3.0 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | GH710V |
| Engine type | Four-stroke, air-cooled, V |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 725 cm2, (44.2 cu·in) |
| Bore and stroke | 83.0 mm X 67.0 mm (3.27 in X 2.64 in) |
| Horsepower | 20.3 PS (14.9 KW; 20.0 HP) |
| Starter | Electric |
| Oil capacity: | 1.8 L (1.9 US. qt, 1.6 Imp. qt.) |
| Spark plug | Champion RC12YC |
| Engine | |
| Engine model | GH737V |
| Engine type | Four-stroke, air-cooled, V |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 725 cm2, (44.2 cu·in) |
| Bore and stroke | 83.0 mm X 67.0 mm (3.27 in X 2.64 in) |
| Horsepower | 20.3 PS (14.9 KW; 20.0 HP) |
| Starter | Electric |
| Oil capacity: | 1.8 L (1.9 US. qt, 1.6 Imp. qt.) |
| Spark plug | Champion RC12YC |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Manual |
| Brakes | Disc |
| Transmission model | – |
| Transmission type | Belt-driven hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 9.0 kmh (5.6 mph) Reverse: 5.0 (3.1 mph) |
| Transmission oil capacity | 2.79 L (0.7 US. gal, 0.6 Imp. gal.) |
| Tires | |
| Front tires | Lawn/turf: 15×6.00-6 |
| Rear tires | Lawn/turf: 22×11.00-10 |
