Kubota T2380

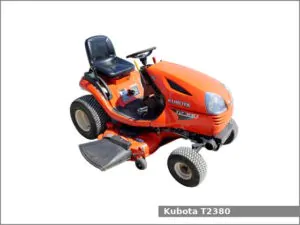

Kubota T2380The Kubota T2380 is a 2WD lawn tractor from the T series. This tractor was manufactured by Kubota from 2008 to 2019. The Kubota T2380 is equipped with a 0.7 L two-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Kubota T2380 is equipped with manual steering, disc brakes, open operator station, 15.0 liters (4 US gal.; 3.3 Imp. gal) or 13.5 liters (3.6 US gal, 3 Imp. gal) fuel tank and mid-mount Kubota RCK48-LT23 48 in (1,210 mm) mower deck with 2-blades and manual lift.

The tractor could be equipped with the following engines:

  • GH720V for early version. It is a 0.7 L, 725 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) of output power.
  • GH738V for later version. It is a 0.7 L, 725 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine. The cylinder bore is 83.0 mm (3.27 in) and the piston stroke is 67.0 mm (2.64 in). This engine produced 22.3 PS (16.4 kW; 22.0 HP) of output power.

Kubota T2380 Specifications

General Specifications
Model Kubota T2380
Length Early: 1,840 mm (72.4 in)
Later: 1,955 mm (77.0 in)
Width Early: 1,540 mm (60.6 in)
Later: 1,520 mm (59.9 in)
Height 1,120 mm (44.1 in)
Wheel base 1,380 mm (54.3 in)
Weight Early: 285 kg (628 lbs)
Later: 300 kg (660 lbs)
Fuel tank capacity Early: 15.0 liters (4.0 US gal; 3.3 Imp. gal)
Later: 13.5 liters (3.6 US gal, 3.0 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model GH720V
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Horsepower 23.4 PS (17.2 kW; 23.0 HP)
Starter Electric
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Spark plug Champion RC12YC
Engine
Engine model GH738V
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Horsepower 22.3 PS (16.4 kW; 22.0 HP)
Starter Electric
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Manual
Brakes Disc
Transmission model
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.0 kmh (5.6 mph) Reverse: 5.0 (3.1 mph)
Transmission oil capacity 2.79 L (0.7 US. gal, 0.6 Imp. gal.)
Tires
Front tires Lawn/turf: 15×6.00-6
Rear tires Lawn/turf: 22×11.00-10
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
