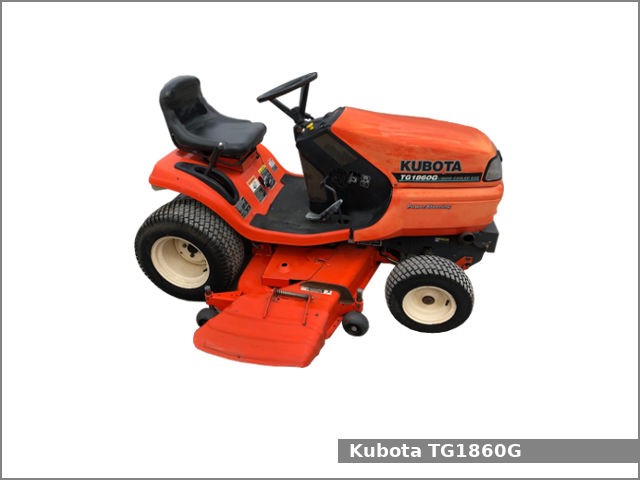

Kubota TG1860G

Kubota TG1860GThe Kubota TG1860G is a 2WD lawn tractor from the TG series. This tractor was manufactured by Kubota from 1998 to 2003. The Kubota TG1860G is equipped with a 0.6 L two-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Kubota TG1860G lawn tractor used the Kawasaki FD590V engine. It is a 0.6 L, 585 cm2, (35.7 cu·in) V-twin natural aspirated gasoline engine with 74.0 mm (2.91 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm of gross output power.

The Kubota TG1860G is equipped with power steering, open operator station and 15.0 liters (4.0 US gal.; 3.3 Imp. gal) fuel tank.

Following attachments are available for the Kubota TG1860G lawn tractor:

  • Mid-mount Kubota RCK48TG 48 in (1,210 mm) mower deck with 3-blades and manual lift
  • Mid-mount Kubota RCK54TG 54 in (1,370 mm) mower deck with 3-blades and manual lift
  • Front-mount Kubota TG2001 48 in (1,210 mm) blade
  • Front-mount Kubota 46 in (1,160 mm) two-stage snowblower

Kubota TG1860G Specifications

General Specifications
ModelKubota TG1860G
Length1920 mm (75.6 in)
Width1,020 mm (40.2 in)
Height1,135 mm (44.7 in)
Wheel base
Weight380 kg (860 lbs)
Fuel tank capacity15.0 liters (4 US gal.; 3.3 Imp. gal)
Battery12V, 36Ah
Cabin typeOpen operator station
Engine modelKawasaki FD590V
Engine typeFour-stroke, liquid-cooled, V
Fuel typeGasoline
Displacement0.6 L, 585 cm2, (35.7 cu·in)
Bore and stroke74.0 mm X 78.0 mm (2.91 in X 3.07 in)
Horsepower18.2 PS (13.4 kW; 18.0 HP) at 3,600 rpm
Oil capacity:1.7 L (1.8 US. qt, 1.5 Imp. qt.)
Coolant capacity:3.0 L (3.2 US. qt, 2.6 Imp. qt.)
Spark plugNGK BMR6A
Transmission and chassis
Chassis4×2 2WD
Steering typePower
Transmission model
Transmission typeBelt-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 11.6 kmh (7.2 mph) Reverse: 6.1 (3.8 mph)
Transmission oil capacity3.5 L (0.9 US. gal, 0.8 Imp. gal.)
Front tiresLawn/turf: 16×6.50-8
Rear tiresLawn/turf: 23×10.50-12
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO speed
