Kubota Z122R

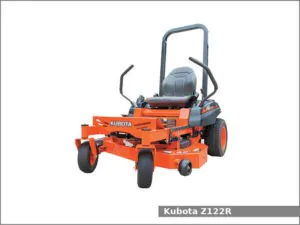

Kubota Z122RThe Kubota Z122R is a 2WD zero-turn mower from the Z series. This tractor has been manufactured by Kubota since 2015. The Kubota Z122R is equipped with a 0.7 L V-twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The Kubota Z122R zero-turn mower used the Kawasaki FR-series engine. It is a 0.7 L, 726 cm2, (44.3 cu·in) V-twin natural aspirated gasoline engine with 78.0 mm (3.07 in) of the cylinder bore and 76.0 mm (2.99 in) of the piston stroke. This engine produced 21.8 PS (16.0 kW; 21.5 HP) of maximum output power.

The Kubota Z122R is equipped with 2-hand levers (hydraulically damped) steering, open operator station with two-post ROPS, 12.2 liters (3.2 US gal.; 2.7 Imp. gal) fuel tank, and mid-mount Kubota RCK42P-122Z 42 inches (1,060 mm) mower deck with 2-blades.

Kubota Z122R Specifications

General Specifications
ModelKubota Z122R
Length1,890 mm (74.4 in)
Width1,075 mm (42.3 in)
Height1,650 mm (65 in)
Wheel base1,235 mm (48.6 in)
Weight280 kg (617 lbs)
Fuel tank capacity12.2 liters (3.2 US gal.; 2.7 Imp. gal)
Battery12V, CCA: 300A
Cabin typeOpen operator station with two-post ROPS
Engine modelKawasaki FR-series
Engine typeFour-stroke, air-cooled, V-twin
Fuel typeGasoline
Displacement0.7 L, 726 cm2, (44.3 cu·in)
Bore and stroke78.0 mm X 76.0 mm (3.07 in X 2.99 in)
Horsepower21.8 PS (16.0 kW; 21.5 HP)
Oil typeSAE 10W-30; API: SJ or higher
Oil capacity:2.2 L (2.3 US. qt, 1.9 Imp. qt.)
Spark plugNGK BPR4ES
Transmission and chassis
Chassis4×2 2WD
Steering type2-Hand levers (hydraulically damped)
Transmission modelZT2200
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 6.5 (4 mph)
Transmission oil capacity1.5 L (0.4 US. gal, 0.3 Imp. gal.)
Front tiresLawn/turf: 11×4-5
Rear tiresLawn/turf: 18×7.5-14
PTO (Power take-off shaft)
Middle PTO typeIndependent with electric dry disc clutch
Middle PTO speed
