Kubota Z125S

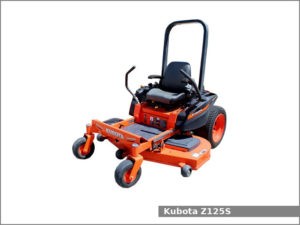

Kubota Z125SThe Kubota Z125S is a 2WD zero-turn mower from the Z100 series. This tractor has been manufactured by Kubota since 2014. The Kubota Z125S is equipped with a 0.7 L V-twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The Kubota Z125S zero-turn mower used the Kohler GH750 engine. It is a 0.7 L, 747 cm2, (45.6 cu·in) V-twin natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 69.0 mm (2.72 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) of output power.

The Kubota Z125S is equipped with differential power steering, open operator station, 16.0 liters (4.2 US gal.; 3.5 Imp. gal) fuel tank, and mid-mount the Kubota RCK54P-127ZA 54 inches (1,370 mm) mower deck with 3-blades.

Kubota Z125S Specifications

General Specifications
Model Kubota Z125S
Length 1,940 mm (76.4 in)
Width 1,200 mm (47.2 in)
Height 1,650 mm (65 in)
Wheel base 1,150 mm (45.3 in)
Weight 350 kg (772 lbs)
Fuel tank capacity 16.0 liters (4.2 US gal.; 3.5 Imp. gal)
Battery 12V, CCA: 300A
Cabin type Open operator station
Engine
Engine model Kohler GH750
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 747 cm2, (45.6 cu·in)
Bore and stroke 83.0 mm X 69.0 mm (3.27 in X 2.72 in)
Horsepower 25.3 PS (18.6 kW; 25.0 HP)
Starter Electric
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Differential power
Brakes
Transmission model Hydro-Gear ZT3100
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 13.0 kmh (8.1 mph) Reverse: 6.5 (4 mph)
Transmission oil capacity (with rear axle gear case) 4.8 L (1.3 US. gal, 1.1 Imp. gal.)
Tires
Front tires Lawn/turf: 11×4-5
Rear tires Lawn/turf: 22×10-14
PTO (Power take-off shaft)
Middle PTO type Independent with electric dry disc clutch
Middle PTO speed
