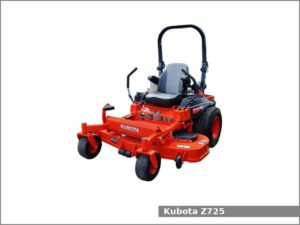

Kubota Z725

Kubota Z725The Kubota Z725 is a 2WD zero-turn mower from the Z700 series. This tractor has been manufactured by Kubota since 2014. The Kubota Z725 is equipped with a 0.8 L (46.0 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Kubota Z725 zero-turn mower used the Kohler CV742 (GH740V) engine. It is a 0.8 L, 753 cm2, (46.0 cu·in) two-cylinder natural aspirated gasoline engine with 84.0 mm (3.31 in) of the cylinder bore and 66.0 mm (2.6 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of output power.

The Kubota Z725 is equipped with differential power steering, drum discs brakes, two-post foldable ROPS, 44.0 liters (11.6 US gal.; 9.7 Imp. gal) fuel tank, and mid-mount the Kubota RCK60P-725Z 60 inches (1,520 mm) mower deck with 3-blades.

Kubota Z725 Specifications

General Specifications
Model Kubota Z725
Length 2,130 mm (83.9 in)
Width 1,380 mm (54.3 in)
Height 1,770 mm (69.7 in)
Wheel base 1,290 mm (50.8 in)
Weight 550 kg (1,213 lbs)
Fuel tank capacity 44.0 liters (11.6 US gal.; 9.7 Imp. gal)
Battery 12V, CCA: 300A
Cabin type Two-post foldable ROPS
Engine
Engine model Kohler CV742 (GH740V)
Engine type Four-stroke, air-cooled, inline
Cylinders 2
Fuel type Gasoline
Displacement 0.8 L, 753 cm2, (46.0 cu·in)
Bore and stroke 84.0 mm X 66.0 mm (3.31 in X 2.6 in)
Horsepower 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Differential power
Brakes Drum discs
Transmission model Parker Torqpact GT14
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 18.0 kmh (11.2 mph) Reverse: 9.0 (5.6 mph)
Transmission oil capacity 3.3 L (0.9 US. gal, 0.7 Imp. gal.)
Tires
Front tires Lawn/turf: 13×6.5-6
Rear tires Lawn/turf: 24×12-12
PTO (Power take-off shaft)
Middle PTO type Independent with electric dry disc clutch
Middle PTO speed –
