Kubota ZD1211

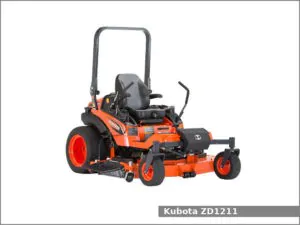

Kubota ZD1211The Kubota ZD1211 is a 2WD zero-turn mower from the ZD1200 series. This mower has been manufactured by Kubota since 2016. The Kubota ZD1211 is equipped with a 1.1 L three-cylinder diesel engine and hydrostatic transmission with infinite forward and reverse gears.

The Kubota ZD1211 zero-turn mower used the Kubota D1105 engine. It is a 1.1 L, 1,123 cm2, (68.5 cu·in) three-cylinder natural aspirated diesel engine with 78.0 mm (3.07 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. This engine produced 25.2 PS (18.5 kW; 24.8 HP) at 3,000 rpm of output power.

The Kubota ZD1211 is equipped with power steering, wet disc type brakes, open operator station with two-post ROPS and 49.0 liters (12.9 US gal.; 10.8 Imp. gal) fuel tank.

Following attachments are available for the Kubota ZD1211 zero-turn mower:

  • ZD1211: mid-mount Kubota RCK60P-1200Z – 60 in (1,520 mm) mower deck with 3-blades and hydraulic lift
  • ZD1211R: mid-mount Kubota RCK600RP-1200Z – 60 in (1,520 mm) mower deck with 3-blades and hydraulic lift
  • ZD1211L: mid-mount Kubota RCK72P-1200Z – 72 in (1,820 mm) mower deck with 3-blades and hydraulic lift
  • ZD1211RL: mid-mount Kubota RCK72RP-1200Z – 72 in (1,820 mm) mower deck with 3-blades and hydraulic lift

Kubota ZD1211 Specifications

General Specifications
ModelKubota ZD1211
Length ZD121/ZD121R: 2,260 mm (89.0 in)
ZD121L/ZD121RL: 2,380 mm (93.7 in)
Width ZD121/ZD121R: 1,510 mm (59.4 in)
ZD121L/ZD121RL: 1,540 mm (60.6 in)
Height1,990 mm (78.3 in)
Wheel base ZD121/ZD121R: 1,440 mm (56.7 in)
ZD121L/ZD121RL: 1,560 mm (61.4 in)
Weight ZD121: 760 kg (1,676 lbs)
ZD121R: 765 kg (1,686 lbs)
ZD121L: 790 kg (1,742 lbs)
ZD121RL: 805 kg (1,775 lbs)
Fuel tank capacity49.0 liters (12.9 US gal.; 10.8 Imp. gal)
Battery12V, CCA: 430A
Cabin typeOpen operator station with two-post ROPS
Engine
Engine modelKubota D1105
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement1.1 L, 1,123 cm2, (68.5 cu·in)
Bore and stroke78.0 mm X 78.0 mm (3.07 in X 3.07 in)
Horsepower25.2 PS (18.5 kW; 24.8 HP) at 3,000 rpm
StarterElectric
Oil capacity:3.9 L (4.1 US. qt, 3.4 Imp. qt.)
Coolant capacity:3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower
BrakesWet disc type
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 17.1 kmh (10.6 mph) Reverse: 8.5 (5.3 mph)
Transmission oil capacity12.1 L (3.2 US. gal, 2.7 Imp. gal.)
Tires
Front tiresLawn/turf: 15×6.0-6
Rear tiresLawn/turf: 26×12.0-16
PTO (Power take-off shaft)
Middle PTO typeIndependent with hydraulic wet disc clutch
Middle PTO speed
