Kubota ZD326

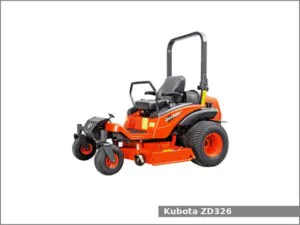

Kubota ZD326The Kubota ZD326 is a 2WD zero-turn mower from the Z300 series. This mower was manufactured by Kubota from 2007 to 2017. The Kubota ZD326 is equipped with 1.0 L three-cylinder diesel engine and hydrostatic transmission with infinite forward and reverse gears.

The Kubota ZD326 zero-turn mower used the Kubota D1005 engine. It is a 1.0 L, 1,001 cm2, (61.1 cu·in) three-cylinder natural aspirated diesel engine with 76.0 mm (2.99 in) of the cylinder bore and 73.6 mm (2.9 in) of the piston stroke. This engine produced 26.4 PS (19.4 kW; 26.0 HP) of gross output power.

The Kubota ZD326 is equipped with differential power steering, wet disc type brakes, two-post foldable ROPS and 49.0 liters (12.9 US gal.; 10.8 Imp. gal) fuel tank.

Following attachments are available for the Kubota ZD326 zero-turn mower:

  • Mid-mount Kubota RCK60P-326Z: 60 in (1,520 mm) mower deck with 3-blades
  • Mid-mount Kubota RCK60R-326Z: 60 in (1,520 mm) mower deck with 3-blades

Kubota ZD326 Specifications

General Specifications
Model Kubota ZD326
Length 2,220 mm (87.4 in)
Width 1,460 mm (57.5 in)
Height 1,915 mm (75.4 in)
Wheel base 1,410 mm (55.5 in)
Weight 810 kg (1,785 lbs)
Fuel tank capacity 49.0 liters (12.9 US gal.; 10.8 Imp. gal)
Battery 12V, CCA: 475A
Cabin type Two-post foldable ROPS
Engine
Engine model Kubota D1005
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 1,001 cm2, (61.1 cu·in)
Bore and stroke 76.0 mm X 73.6 mm (2.99 in X 2.9 in)
Horsepower 26.4 PS (19.4 kW; 26.0 HP)
Starter Electric
Oil capacity: 3.9 L (4.1 US. qt, 3.4 Imp. qt.)
Coolant capacity: 3.5 L (3.7 US. qt, 3.1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Differential power
Brakes Wet disc type
Transmission model HST
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 17.0 kmh (10.6 mph) Reverse: 8.5 (5.3 mph)
Transmission oil capacity 12.1 L (3.2 US. gal, 2.7 Imp. gal.)
Tires
Front tires Ag: 15×6.0-6
Rear tires Ag: 26×12.0-12
PTO (Power take-off shaft)
Middle PTO type Independent with wet multi disks clutch
Middle PTO spped 2,530 rpm
