Kubota ZG222

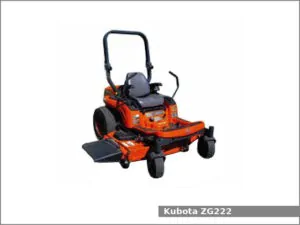

Kubota ZG222The Kubota ZG222 is a 2WD zero-turn mower from the Z200 series. This mower was manufactured by Kubota from 2008 to 2018. The Kubota ZG222 is equipped with a 0.8 L V-twin gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The Kubota ZG222 zero-turn mower used the Kubota KGZ770 engine. It is a 0.8 L, 768 cm2, (46.9 cu·in) V-twin natural aspirated gasoline engine with 84.0 mm (3.31 in) of the cylinder bore and 69.0 mm (2.72 in) of the piston stroke. This engine produced 22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm of output power.

The Kubota ZG222 is equipped with differential power steering, wet disc type brakes, open operator station with two-post foldable ROPS and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank.

Following attachments are available for the Kubota ZG222 zero-turn mower:

  • Mid-mount Kubota RCK48S-222Z 48 in (1,210 mm) mower deck with 3-blades
  • Mid-mount Kubota RCK48P-222Z 48 in (1,210 mm) mower deck with 3-blades

Kubota ZG222 Specifications

General Specifications
ModelKubota ZG222
Length2,090 mm (82.3 in)
Width1,210 mm (47.6 in)
Height1,770 mm (69.7 in)
Wheel base1,290 mm (50.8 in)
Weight530 kg (1170 lbs)
Fuel tank capacity27.0 liters (7.1 US gal.; 5.9 Imp. gal)
Battery12V, CCA: 300A
Cabin typeOpen operator station with two-post foldable ROPS
Engine
Engine modelKubota KGZ770
Engine typeFour-stroke, air-cooled, V-twin
Cylinders2
Fuel typeGasoline
Displacement0.8 L, 768 cm2, (46.9 cu·in)
Bore and stroke84.0 mm X 69.0 mm (3.31 in X 2.72 in)
Horsepower22.3 PS (16.4 kW; 22.0 HP) at 3,600 rpm
StarterElectric
Oil capacity:1.8 L (1.9 US. qt, 1.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeDifferential power
BrakesWet disc type
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 14.5 kmh (9 mph) Reverse: 8.0 (5 mph)
Transmission oil capacity7.5 L (2 US. gal, 1.6 Imp. gal.)
Tires
Front tiresLawn/turf: 13×5.0-6
Rear tiresLawn/turf: 23×10.5-12
PTO (Power take-off shaft)
Middle PTO typeIndependent with hydraulic wet disc clutch
Middle PTO speed
