Massey Ferguson 65

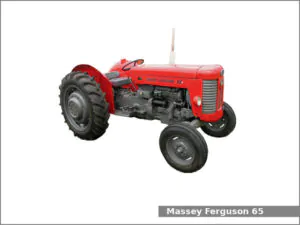

Massey Ferguson 65The Massey Ferguson 65 is a 2WD utility tractor manufactured by Massey Ferguson in Detroit, Michigan, USA and in Coventry, England from 1958 to 1964.

The Massey Ferguson 65 is equipped with one of three engines: a 2.9 L (176.0 cu·in) four-cylinder gasoline/LP-gas engine, a 3.3 L (203.0 cu·in) four-cylinder diesel engine or a 3.1 L (192.0 cu·in) four-cylinder diesel engine and one of two transmissions: a gear type with dry disc clutch transmission with 6 forward and 2 reverse gears or a two-range power shift with dry disc clutch transmission with 12 forward and 4 reverse gears. This tractor was available in utility (model code S) and high-clearance (C) chassis.

The tractor could be equipped with the following engines:

  • Continential (available only in US). It is a 2.9 L, 2,884 cm2, (176.0 cu·in) four-cylinder natural aspirated gasoline/LP-gas engine with 91.0 mm (3.58 in) of the cylinder bore and 111.0 mm (4.37 in) of the piston stroke. The compression ratio rating is 7.1:1 ofr gasoline version or 8.0:1 for LP-gas version.
  • Perkins 4A.203. It is a 3.3 L, 3,327 cm2, (203.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 91.0 mm (3.58 in) and the piston stroke is 127.0 mm (5.0 in). The compression ratio rating is 17.4:1.
  • Perkins 4A.192. It is a 3.1 L, 3,146 cm2, (192.0 cu·in) four-cylinder natural aspirated diesel engine. The cylinder bore is 89.0 mm (3.50 in) and the piston stroke is 127.0 mm (5.0 in). The compression ratio rating is 16.5:1.

The MF 65 is equipped with manual or power (option) steering, differential mechanical internal expanding disc brakes, open operator station, and 50.0 liters (13.2 US gal.; 11 Imp. gal) fuel tank.

Massey Ferguson 65 Specifications

General Specifications
Model Massey Ferguson 65
Length 3,370 mm (132.7 in)
Width 1,820 mm (71.7 in)
Height Utility: 1,440 mm (56.7 in)
Hi-Clearan: 159 mm (6.3 in)
Wheel base 2,130 mm (83.9 in)
Ground clearance Utility: 360 mm (14.2 in)
Hi-Clearan: 510 mm (20.1 in)
Weight (operating) Gas: 1,900 kg (4,189 lbs)
Diesel: 2,050 kg (4,519 lbs)
Fuel tank capacity 50.0 liters (13.2 US gal.; 11 Imp. gal)
Battery Two 6V
Cabin type Open operator station
Engine
Engine model Continential
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline/LP-gas
Displacement 2.9 L, 2,884 cm2, (176.0 cu·in)
Bore and stroke 91.0 mm X 111.0 mm (3.58 in X 4.37 in)
Compression ratio Gasoline: 7.1:1
LP-gas: 8.0:1
Horsepower
Starter Electric
Coolant capacity: 9.8 L (10.4 US. qt, 8.6 Imp. qt.)
Engine
Engine model Perkins 4A.203
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.3 L, 3,327 cm2, (203.0 cu·in)
Bore and stroke 91.0 mm X 127.0 mm (3.58 in X 5 in)
Compression ratio 17.4:1
Horsepower
Starter Electric
Oil capacity: 7.1 L (7.5 US. qt, 6.2 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Engine
Engine model Perkins 4A.192
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.1 L, 3,146 cm2, (192.0 cu·in)
Bore and stroke 89.0 mm X 127.0 mm (3.50 in X 5 in)
Compression ratio 16.5:1
Horsepower
Starter Electric
Oil capacity: 6.0 L (6.35 US. qt, 5.3 Imp. qt.)
Coolant capacity: 8.5 L (9.5 US. qt, 7.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual or power (option)
Brakes Differential mechanical internal expanding disc
Transmission model Dual Range
Transmission type Gear type with dry disc clutch
Gears 6 forward and 2 reverse
Speed Forward: 19.7 kmh (12.2 mph) Reverse: 11.4 (7.1 mph)
Transmission oil capacity 30.0 L (7.9 US. gal, 6.6 Imp. gal.)
Transmission model Multi-Power
Transmission type Two-range power shift with dry disc clutch
Gears 12 forward and 4 reverse
Tires
Front tires Ag: 5.50-16, 6.00-16, 7.50-16
Rear tires Ag: 11-38, 12-28, 12-38, 13-28
Three-Point Hitch
Category I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 30.3 L (8 US. gal, 6.7 Imp. gal.)
Pressure 2500 psi (172.4 bar)
Pump flow 4.76 gpm (18 lpm)
