Oliver 1650

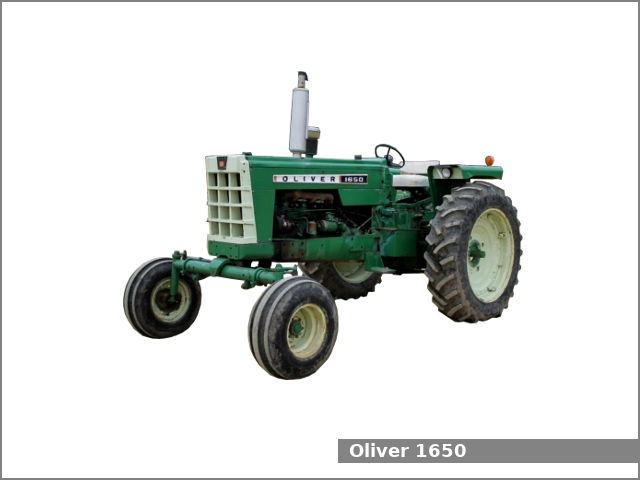

Oliver 1650The Oliver 1650 is a 2WD or 4WD row-crop tractor from the 50 series. This tractor was manufactured by Oliver in Charles City, Iowa, USA from 1964 to 1969.

The Oliver 1650 is equipped with one of two engines: a 4.6 L (283.0 cu·in) six-cylinder gasoline/LP-gas engine or a 4.6 L (283.0 cu·in) six-cylinder diesel engine and one of three transmissions: a helical gear (unsynchronized) transmission with 6 forward and 2 reverse gears and dry disc clutch, a two-speed power shift transmission with 12 forward and 4 reverse gears and with dry disc clutch or a partial power shift transmission with 18 forward and 6 reverse gears.

The tractor could be equipped with the following engines:

  • Waukesha-Oliver. It is a 4.6 L, 4,637 cm2, (283.0 cu·in) six-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 66.9 PS (49.2 kW; 66.0 HP) at 2,200 rpm of output power.
  • Waukesha-Oliver. It is a 4.6 L, 4,637 cm2, (283.0 cu·in) six-cylinder natural aspirated gasoline/LP-gas engine. The cylinder bore is 98.0 mm (3.86 in) and the piston stroke is 102.0 mm (4.02 in). The compression ratio rating is 8.5:1 for gasoline version.

The Oliver 1650 tractor is equipped with power assist steering, differential disc brakes, open operator station or cab (optional) and 87.0 liters (23 US gal.; 19.1 Imp. gal) fuel tank for gasoline or diesel fuel and 106.0 liters (28 US gal, 23.3 Imp. gal) for LP-gas. This tractor could be equipped with the Oliver 1610 loader.

Oliver 1650 Specifications

General Specifications
Model Oliver 1650
Length Row-crop: 3,920 mm (154.3 in)
Utility: 3,560 mm (140.2 in)
Wheatland: 3,730 mm (147.1 in)
4WD: 3,690 mm (145.5 in)
Width 2,070 mm (81.5 in)
Height 2,030 mm (79.9 in)
Wheel base Row-crop: 2,520 mm (99.2 in)
Utility: 2,140 mm (84.3 in)
Wheatland: 2,270 mm (89.5 in)
4WD: 2,090 mm (82.5 in)
Weight (operating) 3,545 kg (7,815 lbs)
Fuel tank capacity Gas/Diesel: 87.0 liters (23 US gal.; 19.1 Imp. gal)
LP-gas: 106.0 liters (28 US gal, 23.3 Imp. gal)
Battery
Cabin type Open operator station or Cab (optional)
Engine
Engine model Waukesha-Oliver
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 4.6 L, 4,637 cm2, (283.0 cu·in)
Bore and stroke 98.0 mm X 102.0 mm (3.86 in X 4.02 in)
Compression ratio 16.0:1
Horsepower 66.9 PS (49.2 kW; 66 HP) at 2,200 rpm
Starter Electric
Oil capacity: 6.3 L (6.7 US. qt, 5.5 Imp. qt.)
Coolant capacity: 18.9 L (20 US. qt, 16.6 Imp. qt.)
Engine
Engine model Waukesha-Oliver
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Gasoline/LP-gas
Displacement 4.6 L, 4,637 cm2, (283.0 cu·in)
Bore and stroke 98.0 mm X 102.0 mm (3.86 in X 4.02 in)
Compression ratio Gas: 8.5:1
Horsepower
Starter Electric
Oil capacity: 6.3 L (6.7 US. qt, 5.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power assist
Brakes Differential disc
Transmission model
Transmission type Helical gear (unsynchronized) with dry disc clutch
Gears 6 forward and 2 reverse
Speed Forward: 22.0 kmh (13.7 mph) Reverse: 8.0 (5 mph)
Transmission model Hydra-Power
Transmission type Two-speed power shift with dry disc clutch
Gears 12 forward and 4 reverse
Speed Forward: 22.0 kmh (13.7 mph) Reverse: 8.0 (5 mph)
Transmission model Hydraul-Shift
Transmission type Partial power shift
Gears 18 forward and 6 reverse
Tires
Front tires Ag: 6.50-16
Rear tires Ag: 15.5-38
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 1000, 540/1000 rpm
