Oliver 1950

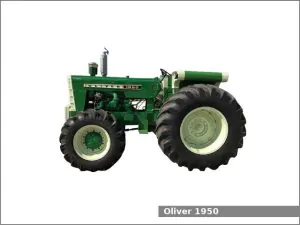

Oliver 1950The Oliver 1950 is a 2WD or 4WD row-crop tractor from the 50 series. This tractor was manufactured by Oliver (a part of White) in Charles City, Iowa, USA from 1964 to 1967. The Oliver 1950 is equipped with a 3.5 L (212.4 cu·in) four-cylinder diesel engine and one of two transmissions: a gear type transmission with 6 forward and 2 reverse gears or a partial power shift transmission with 12 forward and 4 reverse gears.

The Oliver 1950 row-crop tractor used the General Motors 4-53 engine. It is a 3.5 L, 3,480 cm2, (212.4 cu·in) four-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 114.0 mm (4.49 in) of the piston stroke. The compression ratio rating is 21.0:1. This engine produced 106.5 PS (78.3 kW; 105.0 HP) at 2,400 rpm of PTO output power.

The Oliver 1950 is equipped with hydraulic power steering, differential disc brakes, an open operator station or Cab (optional), and 104.1 liters (27.5 US gal.; 22.9 Imp. gal) fuel tank.

Oliver 1950 Specifications

General Specifications
Model Oliver 1950
Length
Width
Height
Wheel base 2WD: 2,660 mm (104.7 in)
4WD: 2,160 mm (85 in)
Weight (operating) 2WD: 5,420 kg (11,949 lbs)
4WD: 5,885 kg (12,974 lbs)
Fuel tank capacity 104.1 liters (27.5 US gal.; 22.9 Imp. gal)
Battery
Cabin type Open operator station or Cab (optional)
Engine
Engine model General Motors 4-53
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.5 L, 3,480 cm2, (212.4 cu·in)
Bore and stroke 98.0 mm X 114.0 mm (3.86 in X 4.49 in)
Compression ratio 21.0:1
Horsepower 106.5 PS (78.3 kW; 105.0 HP) at 2,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydraulic power
Brakes Differential disc
Transmission model
Transmission type Gear type
Gears 6 forward and 2 reverse
Speed Forward: 23.3 kmh (14.5 mph) Reverse: 7.9 kmh (4.9 mph)
Transmission model Hydra-Power
Transmission type Partial power shift
Gears 12 forward and 4 reverse
Speed Forward: 23.3 kmh (14.5 mph) Reverse: 7.9 kmh (4.9 mph)
Tires
Front tires Ag: 11.00-16
Rear tires Ag: 23.1-34
Three-Point Hitch
Category II/I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 13.2 L (3.5 US. gal, 2.9 Imp. gal.)
Pump flow 11.7 gpm (44.3 lpm)
