CaseIH 895

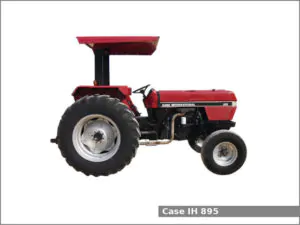

CaseIH 895The CaseIH 895 is a 2WD or 4WD utility tractor from the 95 Utility series. This tractor was manufactured by CaseIH in Doncaster, England from 1991 to 1994. The CaseIH 895 is equipped with a 4.4 L (268.0 cu·in) four-cylinder diesel engine and one of three transmissions: a partially synchronized transmission with 8 forward and 4 reverse gears, a partial power shift transmission with 16 forward and 8 reverse gears or a synchronized shuttle transmission with 8 forward and 8 reverse gears.

The Case IH 895 utility tractor used the Case IH D268 engine. It is a 4.4 L, 4,392 cm2, (268.0 cu·in) four-cylinder natural aspirated diesel engine with 100.0 mm (3.94 in) of the cylinder bore and 140.0 mm (5.51 in) of the piston stroke. This engine produced 85.1 PS (62.6 kW; 84.0 HP) at 2,400 rpm of output power.

The CaseIH 895 is equipped with power steering, hydraulic wet disc brakes, two-post ROPS or cab (optional), and 75.7 liters (20 US gal.; 16.7 Imp. gal) fuel tank.

Following attachments are available for the CaseIH 895 utility tractor:

  • Case IH 2250 loader
  • Case IH 2255 loader

CaseIH 895 Specifications

General Specifications
Model CaseIH 895
Length 3,600 mm (141.7 in)
Width 1,980 mm (78 in)
Height ROPS: 2,470 mm (97.2 in)
Cab: 2,590 mm (102 in)
Wheel base 2,250 mm (88.6 in)
Ground clearance (front axle) 2WD: 550 mm (21.7 in)
4WD: 390 mm (15.4 in)
Weight (shipping) 2WD ROPS: 2,750 kg (6,065 lbs)
2WD Cab: 3,115 kg (6,870 lbs)
4WD ROPS: 3,280 kg (7,225 lbs)
4WD Cab: 3,640 kg (8,025 lbs)
Fuel tank capacity 75.7 liters (20 US gal.; 16.7 Imp. gal)
Battery 12V
Cabin type Two-post ROPS or Cab (optional)
Engine
Engine model Case IH D268
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.4 L, 4,392 cm2, (268.0 cu·in)
Bore and stroke 100.0 mm X 140.0 mm (3.94 in X 5.51 in)
Horsepower 85.1 PS (62.6 kW; 84.0 HP) at 2,400 rpm
Starter Electric
Oil capacity: 9.8 L (10.4 US. qt, 8.6 Imp. qt.)
Coolant capacity: 13.7 L (14.5 US. qt, 12.1 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model
Transmission type Partially synchronized with dry disc clutch
Gears 8 forward and 4 reverse
Speed Forward: 31.8 kmh (19.8 mph) Reverse: 10.0 (6.2 mph)
Transmission oil capacity 34.1 L (9 US. gal, 7.5 Imp. gal.)
Transmission model
Transmission type Partial power shift
Gears 16 forward and 8 reverse
Speed Forward: 31.8 kmh (19.8 mph) Reverse: 10.0 (6.2 mph)
Transmission oil capacity 34.1 L (9 US. gal, 7.5 Imp. gal.)
Transmission model
Transmission type Synchronized shuttle
Gears 8 forward and 8 reverse
Speed Forward: 31.8 kmh (19.8 mph) Reverse: 40.5 (25.2 mph)
Transmission oil capacity 34.1 L (9 US. gal, 7.5 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-24
Three-Point Hitch
Category II
Control type
Lift capacity (at ends) 1,662 kg (3,665 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 34.1 L (9 US. gal, 7.5 Imp. gal.)
Valves 1
Pump flow 15.8 gpm (59.8 lpm)
