Cub Cadet 102

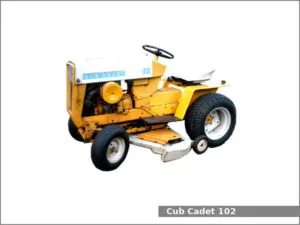

Cub Cadet 102The Cub Cadet 102 is a 2WD garden tractor from the 1X2/1X3 series. This tractor was manufactured by the Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1965 to 1967. The Cub Cadet 102 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven gear type transmission with dry disc clutch and 3 forward and 1 reverse gear.

The Cub Cadet 102 lawn tractor used the Kohler K241AS engine. It is a 0.4 L, 391 cm2, (23.9 cu·in) single-cylinder natural aspirated gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet 102 is equipped with manual steering, dry disc brakes, open operator station and 6.2 liters (1.6 US gal.; 1.4 Imp. gal) fuel tank.

Following attachments are available for Cub Cadet 102 lawn tractor:

  • Mid-mount Cub Cadet 38 in (960 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 42 in (1,060 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 48 in (1,210 mm) mower deck with 3-blades and manual lift
  • Font-mount Cub Cadet 42 in (1,060 mm) blade
  • Font-mount Cub Cadet 36 in (910 mm) snow blower

Cub Cadet 102 Specifications

General Specifications
Model Cub Cadet 102
Length 1,600 mm (63 in)
Width 840 mm (33.1 in)
Height 1,010 mm (39.8 in)
Wheel base 1,090 mm (42.9 in)
Weight 353 kg (778 lbs)
Fuel tank capacity 6.2 liters (1.6 US gal.; 1.4 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K241AS
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 391 cm2, (23.9 cu·in)
Bore and stroke 82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Compression ratio 7.0:1
Horsepower 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm
Starter Electric
Oil type API SF or SG
Oil capacity: 1.2 L (1.27 US. qt, 1.06 Imp. qt.)
Spark plug Champion RH10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission model
Transmission type Shaft-driven gear type with dry disc clutch
Gears 3 forward and 1 reverse
Speed Forward: 11.1 kmh (6.9 mph) Reverse: 4.0 (2.5 mph)
Transmission model
Transmission type Creeper
Gears 6 forward and 2 reverse
Speed Forward: 2.7 kmh (1.7 mph) Reverse: 1.0 (0.6 mph)
Tires
Front tires Lawn/turf: 4.80×4.00-8, 16×6.50-8
Rear tires Lawn/turf: 6-12, 23×8.50-12
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO spped
Rear PTO type Transmission
Rear PTO spped
