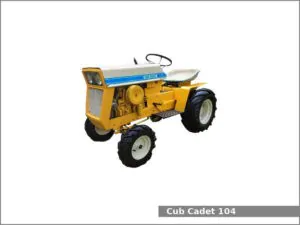

The Cub Cadet 104 is a 2WD garden tractor from the 1X4/1X5 series. This tractor was manufactured by the Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1967 to 1969. The Cub Cadet 104 is equipped with a 0.4 L single-cylinder gasoline engine and gear type transmission with 3 forward and 1 reverse gear or creeper with 6 forward and 2 reverse gears.
The Cub Cadet 104 garden tractor used the Kohler K241AS engine. It is a 0.4 L, 391 cm2, (23.9 cu·in) single-cylinder natural aspirated gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of maximum output power.
The Cub Cadet 104 is equipped with manual steering, dry disc brakes, open operator station and 6.2 liters (1.6 US gal.; 1.4 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet 104 garden tractor:
- Mid-mount Cub Cadet 38QA: 38 in (960 mm) mower deck with 3-blades and manual lift
- Mid-mount Cub Cadet 42QA: 42 in (1,060 mm) mower deck with 3-blades and manual lift
- Mid-mount Cub Cadet 48QA: 48 in (1,160 mm) mower deck with 3-blades and manual lift
- Front-mount Cub Cadet 42 in (1,060 mm) blade
- Front-mount Cub Cadet 36 in (910 mm) snowblower with manual lift
- Front-mount Cub Cadet 42 in (1,060 mm) snowblower with manual lift
Cub Cadet 104 Specifications
| General Specifications | |
| Model | Cub Cadet 104 |
| Length | 1,620 mm (63.8 in) |
| Width | 840 mm (33.1 in) |
| Height | 1,000 mm (39.4 in) |
| Wheel base | 1,090 mm (42.9 in) |
| Weight | 274 kg (604 lbs) |
| Fuel tank capacity | 6.2 liters (1.6 US gal.; 1.4 Imp. gal) |
| Battery | 12V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler K241AS |
| Engine type | Four-stroke, air-cooled, inline |
| Cylinders | 1 |
| Fuel type | Gasoline |
| Displacement | 0.4 L, 391 cm2, (23.9 cu·in) |
| Bore and stroke | 82.6 mm X 73.0 mm (3.25 in X 2.87 in) |
| Horsepower | 10.2 PS (7.5 kW; 10.1 HP) at 3,600 rpm |
| Starter | Electric |
| Oil type | SAE 5W-20, 10W, 30; API SF or SG |
| Oil capacity: | 1.4 L (1.5 US. qt, 1.2 Imp. qt.) |
| Spark plug | Champion RH10 |
| Spark plug gap | 0.65 mm (0.0256 in) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | Dry disc |
| Final drive | |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 3 forward and 1 reverse |
| Speed | Forward: 11.1 kmh (6.9 mph) Reverse: 4.0 (2.5 mph) |
| Transmission oil capacity | 3.3 L (0.9 US. gal, 0.7 Imp. gal.) |
| Transmission model | – |
| Transmission type | Creeper |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 10.9 kmh (6.8 mph) Reverse: 4.0 (2.5 mph) |
| Tires | |
| Front tires | Lawn/turf: 4.80×4.00-8 |
| Rear tires | Lawn/turf: 6-12 |
| Three-Point Hitch | |
| Caterogy | Cub Cadet three-point |
| Control type | – |
| Lift capacity (at ends) | – kg (0 lbs) |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with mechanical clutch |
| Front PTO spped | 3,600 rpm |
| Rear PTO type | Transmission with dry disc clutch |
| Rear PTO spped | 525 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Pressure | 400 psi (27.6 bar) |
| Pump flow | 2.5 gpm (9.5 lpm) |
